Product Description

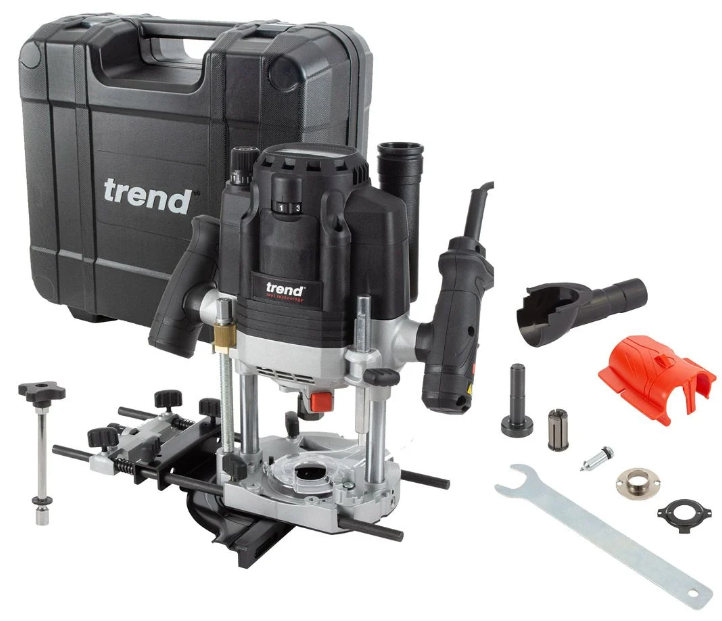

what's in the box
1x T8EK 1/2" Router 240v
1x 1/2" Collet
1x Collet Sleeve
1x Centering Pin
1x 30mm Guide Brush
1x Guide Brush Adaptor
1x Trammer Pin
1x 22mm Spanner
1x Router Table Safety Clip
1x Under Fence Dust Adaptor
1x Vertical Dust Adapter
1x Cyclone Dust Adapter
1x Router Table Height Adjuster
1x Side Fence
1x Carry Case
Notes From PTW Expert
Router table compatible with height adjuster to easily and safely change cutting height from above the table
Trend
3 Year Warranty*
Warranty Info*
Overview
Trend T8EK 2200W 1/2" Dual Mode Plunge Router 240v
The T8EK is trade-focused and engineered for both hand-held and router table use. Ideal for lock morticing, kitchen fitting, worktop jointing and timber profiling. With a 80mm plunge depth - ideal for deep cutting applications. Perfect for lock jigs, worktop joints and timber profiling, The twin LED Worklights illuminate the cutting area to improve safety and accuracy in low-light situations. 240v.
FEATURES
Precision centring system to ensure perfect concentricity between cutter and guide bush for pinpoint accuracy with routing jigs
Router table compatible with height adjuster to easily and safely change cutting height from above the table
Constant speed control monitors the spindle rpm and adjusts automatically to maintain cutter speed for smooth and consistent cuts
11-Level variable speed control offers precise control across a wide range of cutters, materials and applications
Vertical extraction spout prevents extraction hoses from ‘snagging’ on jigs and materials
Extra-wide 75mm base aperture to accommodate over-size cutters, such as panel raisers
7-Position rotating turret with pre-set plunge depth limits for fast, repeatable batch and stepped cutting
Micro-adjustable fence with extraction port featuring adjustable facings and 0.1mm increments for accurate edge rebating, grooving and moulding
Fine height adjuster with an easy-to-read display for precision depth adjustments. 1 rotation equals 2mm height adjustment
Trend base configuration is a standardised fixing pattern of holes that allow routers to be attached to a range of compatible router tables, jigs and accessories
Ergonomic inclined handles feature an integrated power trigger and a soft grip moulding for comfortable operation
Double locking collet prevents accidental cutter ejection while a multi-spline profile ensures concentric clamping of the cutter shank
SPEIFICATION
Duty Rating: Medium/Trade
Duty Rating: Medium/Trade
Motor Power: 2200W
AC Voltage: 240v
Plug Type: UK 3 pin
Supplied Collet Size: 1/2"
Plunge Stroke (Max): 80mm
No Load Speed: 10000-26000rpm
Supplied Guide Bush: 30mm
Fence Rod Length: 360mm
Fence Rod Centres: 84mm
Fence Rod Diameter: 8mm
Base Aperture Diameter: 75mm
Cutter Diameter (Max): 50mm
Dust Spout Internal Diameter: 35mm
Weight (Net): 5.8kg
Power Cable Length: 3m
NOISE & VIBRATION
Sound Pressure (Lpa): 94.1 dB(A)
Acoustic Pressure (Lwa): 105.1 dB(A)
Hand/Arm Vibration: <3.8m/s2.
