Product Description

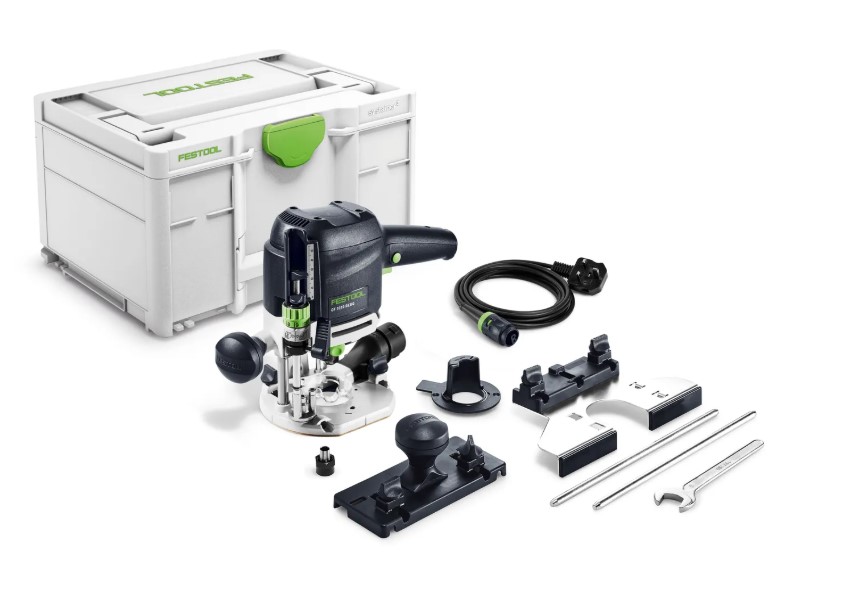

What's in the box
1x OF 1010 REBQ-Plus Router
1x Chip Deflector
1x Guide Rail Adaptor
1x Parallel Guide Fence
1x Open Ended Spanner
1x 8mm Clamping Collet
1x Side Stop
1x Systainer SYS3 M 237
Festool 576918 1010 REBQ-Plus 1/4" Router 240v
Extremely versatile. Extremely precise. Extremely easy to handle: Whether guided freely or on the guide rail, the OF 1010 R router is the ideal one tool for fine routing work. Thanks to its size and low weight, it can be accurately guided along edges, lines or curves. For routing profiles, grooves, rebates and dovetail joints – the OF 1010 R impresses with a wide variety of possible applications.
APPLICATIONS
Rounding, chamfering, rebating and profiling edges
Recessing metal fittings
Grooving rear panels, recessing dovetail batons or routing plasterboard with the guide system (edging technology)
Producing rows of holes in cabinets using the hole series system LR 32
Fashioning wooden joints with the VS 600
FEATURES
Compact design and light weight
Clear view of the routing area
Quick and easy cutter changes
Routing depth adjustment to 1/10 mm
Torsionally rigid router table due to guide columns on both sides
Greater safety thanks to quick-acting brake and restart protection
MMC electronics for adaptation to the working material and temperature monitoring
Chip extraction system integrated into the router table for hose diameters D 27 and D 36
SPECIFICATION
Power Consumption: 1 010 W
Idle Engine Speed: 9 500 - 23 000 min?¹
Collet Dia.: 6 - 8 mm
Routing Stroke: 55.00 mm
Routing Depth Fine Adjustment Range: 8.00 mm
Bench Opening: 50.00 mm
Dust Extraction Connection Dia.: 27/36 mm
Cable Length: 4 m
Product Weight: 3.00 kg
