Product Description

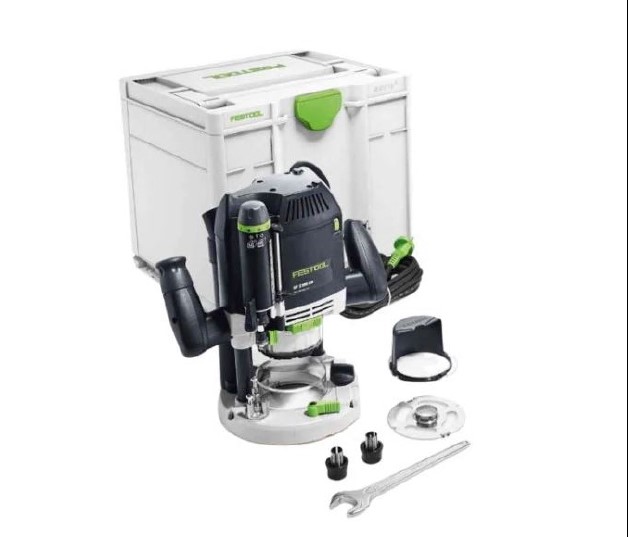

What's in the box
1x OF 2200 EB-Plus Router 110v
1x Ø 1/4" Clamping Collet (6.35 mm)
1x Ø 1/2" Clamping Collet (12.7 mm)
1x Copying Ring Ø 30 mm
1x Chip Deflector
1x Open Ended Spanner, WAF 24
1x Systainer SYS 3 M 337 T-LOC Carry Case

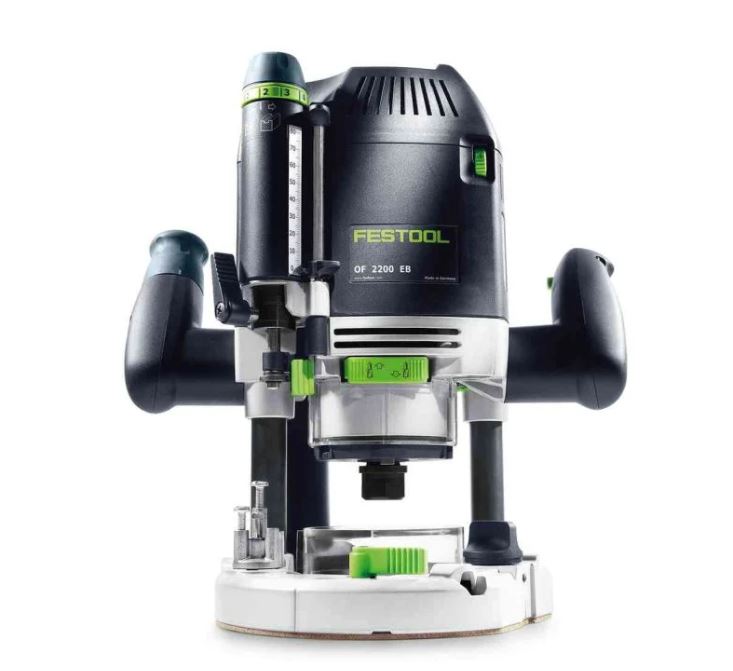

Festool 576219 1/2" Router OF 2200 EB-Plus GB 110v
The power pack with enormous torque
More powerful, easier to use, increased comfort and safer – the OF 2200 offers the greatest low-end torque, the highest precision and the greatest ergonomic comfort. No matter what your task is – with the OF 2200, you have the solution in your hands.
HIGHLIGHTS
Achieve ideal results more quickly:
2200 watts for top power development and powerful low-speed torque for hard materials and large material thicknesses
Convenient and safe:
Simple guidance thanks to ergonomic handle and guide rods that can be moved by 30°. The integrated quick-acting brake minimises the risk of injury
Systems get it done:
Can be expanded in a number of ways with a router system or template system. A cleaner, healthier working environment with Festool mobile dust extractors
APPLICATIONS
Rabbeting, grooving and profiling

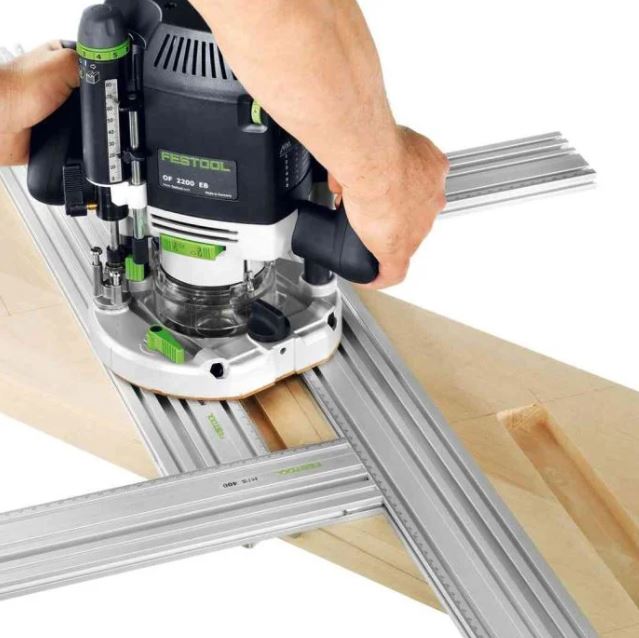

Routing large cutouts, circles and arcs with the MFS routing template
Creating worktop corner joints with the worktop template
Routing seals and espagnolettes in windows and doors
Stationary routing of up to Ø 60 mm with the TF 2200 table router
FEATURES
Top power development and fully variable speed for hard materials and increased material thicknesses
Outstanding ergonomics: guide rods offset by 30 degrees to transfer force efficiently
Tool-free copying ring and base-runner change
Fast, convenient router-bit change with rocker and ratchet principle
Detachable base plate for fast profile cutter adjustment
Dual guide column clamp for extra torsional rigidity and greater precision
Simple and exact routing depth setting to 1/10 mm
Dust extraction of up to 99 % during edge routing through adjustable extraction ring and chip catcher
SPECIFICATION
Collet Diameter: 6 - 12.7 mm
Routing Stroke: 80.00 mm
Routing Depth Fine Adjustment Range: 20.00 mm
Bench Opening: 89.00 mm
Idle Engine Speed: 10,000 - 22,000 min?¹
Power Consumption: 2200 W
Weight: 7.80 kg
Dust Extraction Connection Diameter: 36/27 mm
NOISE & VIBRATION
A-Weighted Sound Power Level, LWA: 98.00 dB(A)
A-Weighted Sound Pressure Level, LpA: 87.00 dB(A)
Uncertainty (Noise) K: 3.00 dB
Total Vibration Average, Ah: 2.50 m/s²
Uncertainty (Vibration) K: 1.50 m/s²
