Product Description

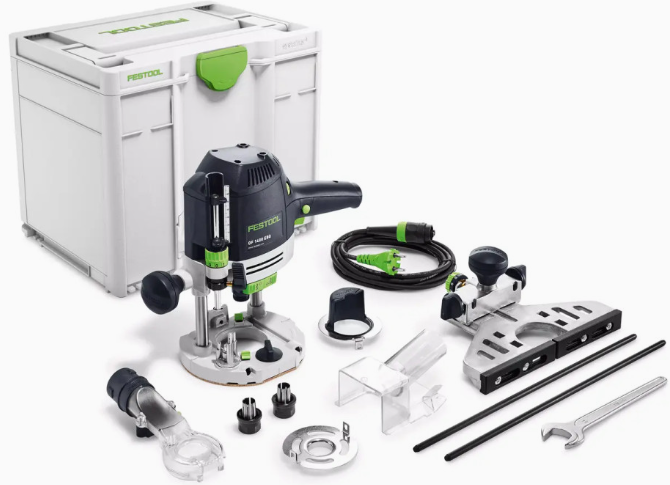

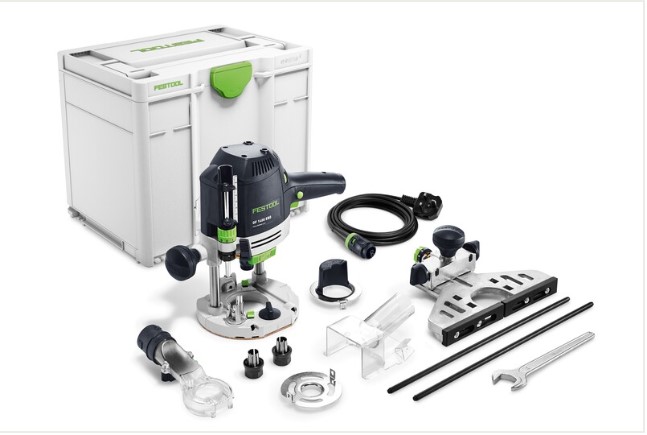

Comes With
240V plug-it power cable
Systainer SYS3 M 337 carry case (connects with other Systainers to form one stack, plus it's compatible with Bott Vario3 vehicle equipment)
12mm clamping collet
8mm clamping collet
30mm copying ring
Side stop with fine setting (parallel side fence)
Chip deflector
Dust extraction hood
Open-ended spanner
Ideal Applications
Rounding, chamfering, rebating and profiling edges
Routing circles and cut-outs with the multi-routing template
Grooving rear panels or recessing dovetail batons with the guide system
Routing with the routing aid to fit Schallex, draft excluders or espagnolettes
Routing mineral material (max. cutter Ø 45mm)

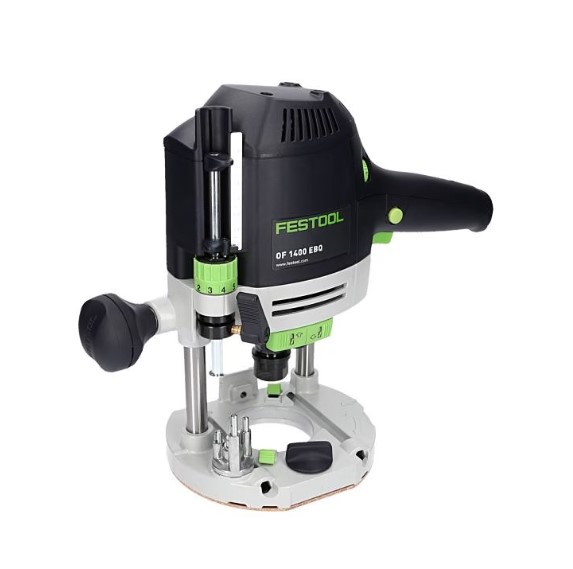

Best Features of the Festool OF 1400 Router
Extremely versatile for virtually unlimited applications:
An extensive range of system accessories are available, including cutters, routing templates, guide rails and the VS 600 jointing system, so you can master virtually any routing task
Long 70mm routing stroke makes it particularly easy when routing at large depths, routing with templates and routing recesses for fittings
Absolute precision for perfect routing results:
Guide columns on both sides make this Festool 1/2" router extremely torsionally rigid
Precise fine routing depth adjuster dial allows you to quickly and easily adjust the routing depth from 0-8mm in 0.1mm increments
Parallel side fence for routing parallel to the workpiece edge, routing rebates and creating back wall grooves. It can be attached and detached in an instant.
Compatible with Festool's patented guide rail system for increased precision when routing grooves and rows of holes
Multi Material Control (MMC) electronics - Adjustable speed, constant speed under load and motor temperature monitoring for perfect adaptation to the material
Easy handling for safe and secure guidance with low exertion, even when routing edges:
One of the lowest weights in its class at just 4.5kg
Ergonomic rod handle
On/off switch and infinite speed adjustment can be operated without changing your grip
Up to 99% dust extraction ensures that the workpiece surface is kept clear of dust for increased precision, plus a healthier and cleaner work environment:
Integrated dust extractor connector doesn't obstruct your view of the workpiece surface
Unique chip deflector ensures efficient dust extraction and guarantees maximum suction power when routing edges
Cleantec bayonet fitting ensures that the suction hose doesn't slip out of this Festool router
FastFix interface for quick and easy accessory changes:
Spindle stop with rocker and ratchet principle for rapid cutter changes without removing the key
One-click tool-free copying ring changes
Quick-acting brake stops this Festool plunge router in seconds for increased safety
Antistatic function prevents static charge from accumulating
Removable and replaceable plug-it mains cable with a safety lock - Use the one cable for quick changeover of your electric Festool tools (there's no need to unplug and replug via the socket or your dust extractor), and if the cable breaks it can be replaced quickly without any problems.
Technical Spec.
Voltage: 240 V
Collet diameter: 6-12.7 mm
Routing depth fine adjustment range: 0-8 mm
Routing stroke: 70 mm
Bench opening: 63 mm
Power consumption: 1400 W
Idle engine speed: 10,000-22,500 rpm
Weight (without accessories): 4.6 kg
Standards: EN 60745-2-17
Average vibration: 3.5 m/s²
Sound pressure: 95 dB(A)
Sound power: 106 dB(A)
Cable length: 4 m
Dust extraction connection diameter: 27/36 mm
Part number: 576210
