Product Description

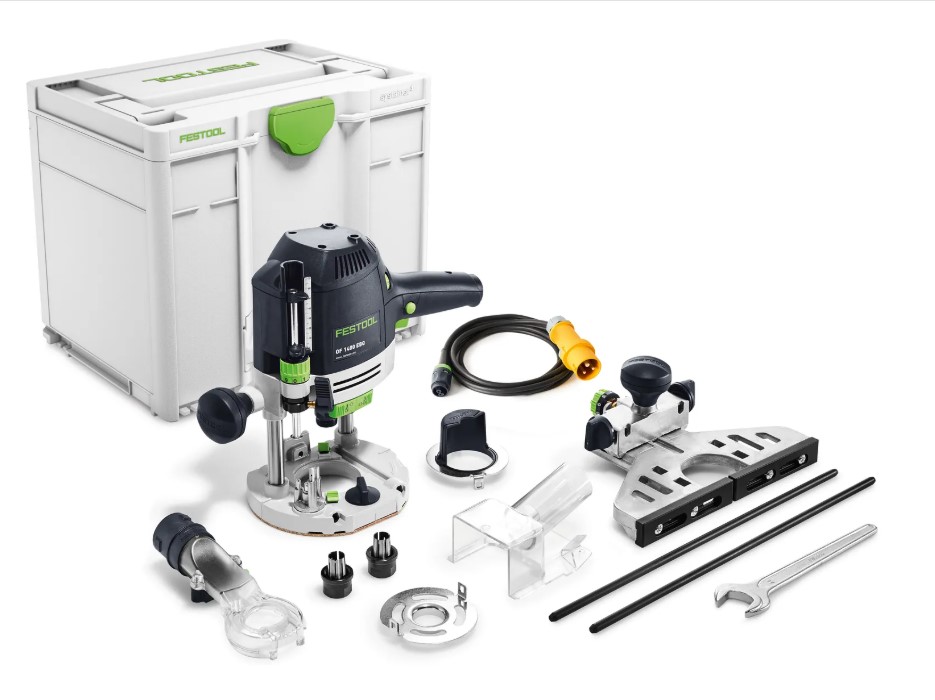

What's in the box
1x OF 1400 EBQ-Plus Router
1x Chip Deflector
1x Ø 8mm Clamping Collet
1x Ø 12mm Clamping Collet
1x Side Stop with Fine Setting
1x Copying Ring Ø 30 mm
1x Extraction Hood, Top
1x Open Ended Spanner, WAF 24
1x Systainer SYS 3 M 337 T-LOC Carry Case
Festool 576209 1/2" Router OF 1400 EQ-Plus GB 110v
Power and ease of operation in perfect harmony
The handy multi-talent: The OF 1400 router weighs just 4.5 kg – one of the lowest machine weights in its class. The 70 mm routing stroke is impressive when making recesses for fittings or routing with templates. It also has a comprehensive set of equipment that enables it to master virtually any routing task.
HIGHLIGHTS
Achieve ideal results more quickly:
Absolute precision – double-sided column clamp makes the router extremely torsionally rigid, guaranteeing perfect routing results
Convenient and safe:
Lightweight with 70 mm routing stroke. Particularly useful when making recesses for fittings or routing with templates
Systems get it done:
Can be expanded in a number of ways with a router system, template system, hole drilling system and jointing system. A cleaner, healthier working environment with Festool mobile dust extractors
APPLICATIONS
Rounding, chamfering, rebating and profiling edges
Routing circles and cut-outs with the multi-routing template

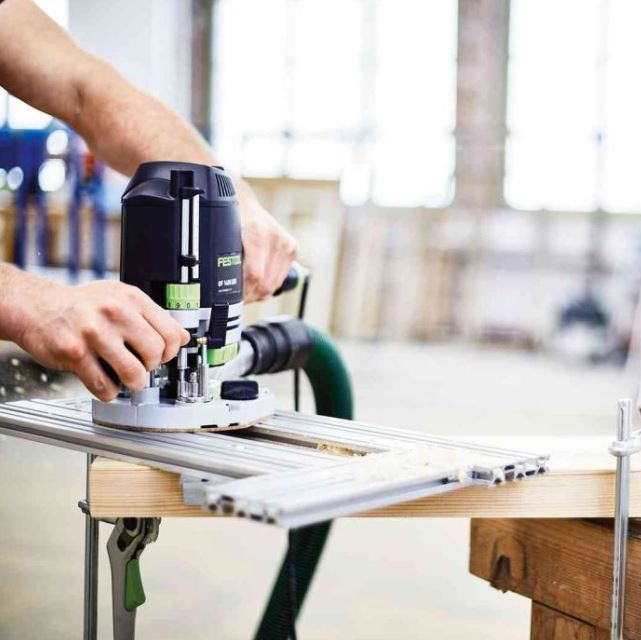

Grooving rear panels or recessing dovetail batons with the guide system
Routing with the routing aid to fit Schallex, draft excluders or espagnolettes
Routing mineral material (max. cutter Ø 45 mm)
FEATURES
Routing depth adjustment to 1/10 mm
Pure precision: rigid base plate due to guide columns on both sides
Short set-up times: Rocker and ratchet principle for convenient cutter changes
Tool-less copying ring changes
Up to 99 % dust extraction when routing with chip deflector and dust extraction hood
Quick-acting brake and MMC electronics
SPECIFICATION
Collet Dia.: 6 - 12.7 mm
Routing Stroke: 70.00 mm
Routing Depth Fine Adjustment Range: 8.00 mm
Bench Opening: 63.00 mm
Idle Engine Speed: 10,000 - 22,500 min?¹
Power Consumption: 1400 W
Weight: 4.50 kg
Dust Extraction Connection Dia.: 27/36 mm
NOISE & VIBRATION
A-Weighted Sound Power Level, LWA: 93.00 dB(A)
A-Weighted Sound Pressure Level, LpA: 82.00 dB(A)
Uncertainty (Noise) K: 3.00 dB
Total Vibration Average, Ah: 3.50 m/s²
Uncertainty (Vibration) K: 2.00 m/s²
