Product Description
WHAT'S IN THE BOX
1x Planer EHL 65 EQ
1x Spiral Blade
1x Parallel Side Fence
1x Hex Key, WAF 2
1x Plug-It 110v Power Cable
1x Systainer SYS 2 T-LOC Carry Case

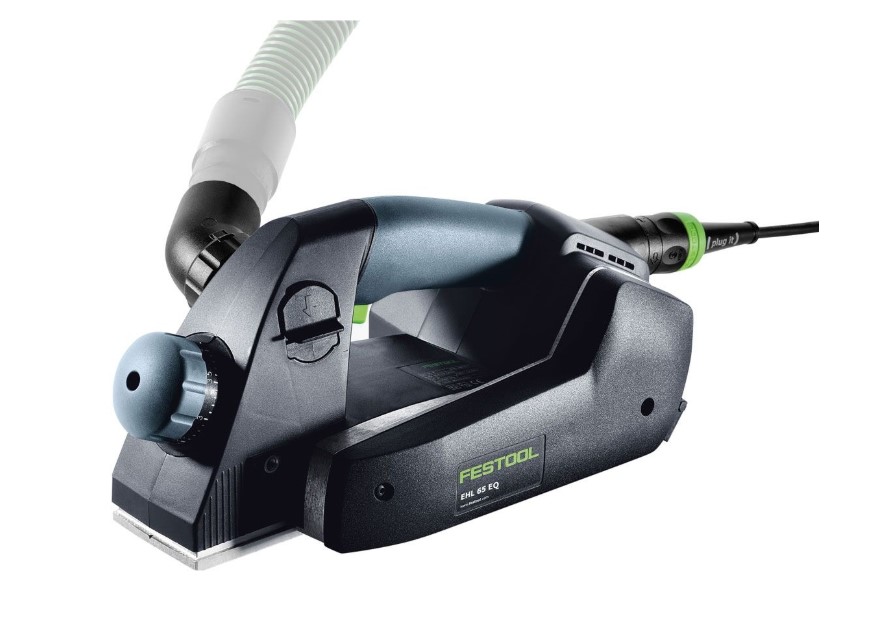

FESTOOL 574561 ONE HANDED PLANER EHL 65 EQ GB 110V
MODIFIED SLIGHTLY. IMPROVED DECISIVELY
Weighing just 2.4 kg and with a compact design, the EHL 65 electric planer is not only the lightest and lowest one-handed planer in its class, but also the most powerful. 4 mm planing and 23 mm rebate depth and excellent surface finish thanks to the unique spiral blade with pulling cut. With SoftGrip handle and cutting depth adjustment, single-button operation and non-slip ridges on the housing for a secure hold. This means that the planer can be guided effortlessly, whether it's horizontally or vertically, with one or two hands, with the left hand or right hand. In short: It's ergonomic. Fast. Precise. The one-handed planer for professionals.
HIGHLIGHTS
Achieve ideal results more quickly: Noticeably finer planed surface without chatter marks thanks to the diagonally angled spiral blade and pulling cut
Convenient and safe: Perfectly balanced working weight of just 2.4 kg and a resulting reduction in weight of up to 30%
Systems get it done: With a compatible plug-it connection – simply connect it to use it with a number of other Festool system tools
APPLICATIONS
Trimming work
Assembly work
Planing carcasses, trim, skirting, infill panels, doors, etc.
Applications where convenient one-handed operation is required
FEATURES
Efficient dust extraction at the left/right side no clean-up needed
Only 2.4 kg, compact height, soft grip on handle and chip depth adjustment, additional grips for better support
Quiet: The spiral blade reduces the noise level considerably
Maximum 4 mm planing depth and 23 mm rebate depth for more speed and flexibility
Variable chip depth adjustment and spiral blade for high surface quality in diverse application areas
No interruptions – thanks to quick blade change with automatic adjustment the timely and complex task of adjusting the cutting diameter is dispensed with
SPECIFICATION
Planer Shaft Speed: 15600.00 min?¹
Planing Depth: 0 - 4 mm
Max. Rebate Depth: 23.00 mm
Power Consumption: 720 W
Weight: 2.40 kg
Planing Width: 65.00 mm
Dust Extraction Connection Dia.: 27 mm
NOISE & VIBRATION
A-Weighted Sound Pressure Level, LpA: 77.00 dB(A)
A-Weighted Sound Power Level, LWA: 88.00 dB(A)
Uncertainty (Noise) K: 3.00 dB
Total Vibration Average, Ah: 2.50 m/s²
Uncertainty (Vibration) K: 1.50 m/s²
