Product Description
What’s Included

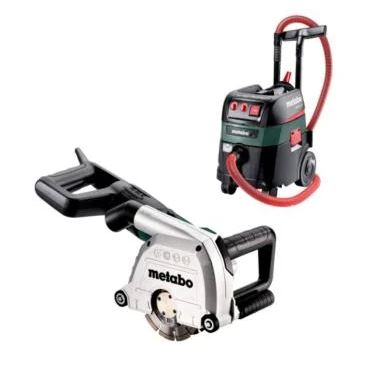

MFE40 Wall Chaser
ASR35MACP Dust Extractor
2x Diamond Cutting Discs
Spacer Rings
Flange Nut
Face Pin Wrench
Chase Chisel
Plastic Carrying Case
Antistatic Suction Hose (35 mm / 4 m)
Connection Bush 41/48 mm
Handle Adapter
2 Plastic Suction Tubes
2 Polyester Filter Cassettes (M class)
PE Filter Bags
Crevice Nozzle
Floor Nozzle (300 mm wide)
Voltage: 240v
Size: 125mm (5")
Product Overview
Ideal for electric installations to lay cables and empty pipes under plaster with cutting depths up to 40 mm and paied with the ASR35MACP Dust Extractor, makes your work environment virtualy dust free
Part No: UK604040596(METPUK604040596)
Features & Benefits
MFE40 Wall Chaser
Ideal for electric installations to lay cables and empty pipes under plaster with cutting depths up to 40 mm
Maximum work progress by means of powerful motor, constant speed and two-speed high-performance gear
Robust aluminium die-cast hood with rubber rolls and optimal handle position for comfortable guiding of the machine
Pushing cut for optimal view of the marking line
Channel width and cutting depth can be set
Metabo Marathon motor with patented dust protection for long service life
Tacho-Constamatic (TC)-Full Wave Electronics: fast work progress by means of constant speed under load
Electronic soft start and restart protection for safe working
LED signal informs about overload or active restart protection
Clean, low-dust working by means of connecting a Metabo all-purpose vacuum cleaner (certified with ASR 35 M ACP)
Suitable for slitting grooves up to a width of 30 mm without centre in one workstep (with special accessories)
Also suitable for cutting with only one diamond cutting disc
Metabo S-automatic safety clutch: mechanical decoupling of the drive for safe working should the disc stop unexpectedly
ASR35MACP Dust Extractor
For extraction from the power tool in continuous mode, both on construction sites and in the workshop
Especially suited for extracting concrete and rock dust
Compact vacuum cleaner for liquids and dry solids with commercial registration
Power socket for a power tool for using the automaticalstart-up/shut-down of the vacuum cleaner
AutoCleanPlus: saves both costs and time thanks to automatic MPulse filter cleaning during continuous use
If the optimum suction performance falls below a certain level, the filters are vibrated immediately
High user protection: certified in accordance with EU standard for M class dusts
Automatic shut-down when vacuuming liquids once the maximum fill level is reached
Warning signal on shortfall of the minimum volume flow to protect the user
Optimum suction power by preselection of the hose diameter
Automatic trailing mechanism for emptying the suction hose completely
Antistatic basic equipment prevents static charge when using appropriate accessories
Sturdy thanks to especially large wheels and castors with wheel stop
Cable winding mechanism
Practical accessory case and storage area
Technical Specification
MFE40 Wall Chaser
Adjustable Cutting Depth: 10 - 40 mm
Possible Groove Widths: 9 / 15.5 / 22 / 28.5 / 35 mm
Cutting Disc Diameter: 125 mm
Rated Input Power: 1900 W
Output Power: 970 W
No-Load Speed: 5000 rpm
Revolutions at Rated Load: 4000 rpm
Torque: 6 Nm
Weight (without power cable): 4.6 kg
Cable Length: 4 m
Sound Pressure Level: 93 dB(A)
Sound Power Level (LwA): 104 dB(A)
Uncertainty of Measurement K: 3 dB(A)
ASR35MACP Dust Extractor
Air output max.: 4380 l/min
Vacuum: 248 hPa (mbar)
Filter Surface: 8600 cm²
Input Power Max.: 1400 W
Container Volume: 35 l
Suction Hose : 35 mm
Hose Length: 4 m
Weight: 16 kg
Cable Length: 8 m
Sound Pressure Level: 69 dB(A)
