Product Description
WHAT'S IN THE BOX
1x HP333D Combi Drill
1x HP333D Belt Clip
1x TD110D Impact Driver
1x TD110D Belt Clip
2x Driver Bits
2x BL1021B 2.0Ah 12V MAX Slide Batteries
1x DC10WD 12V MAX Slide Charger
1x Makpac Connector Case Type 1 with Inlay

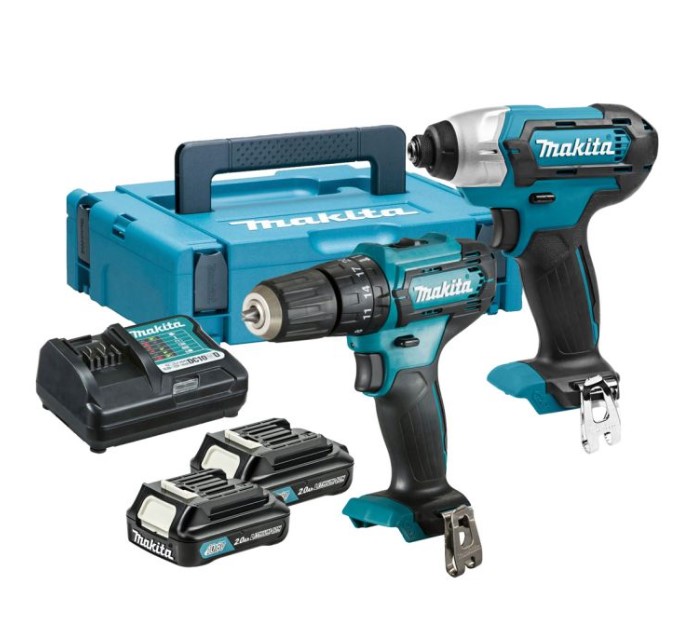

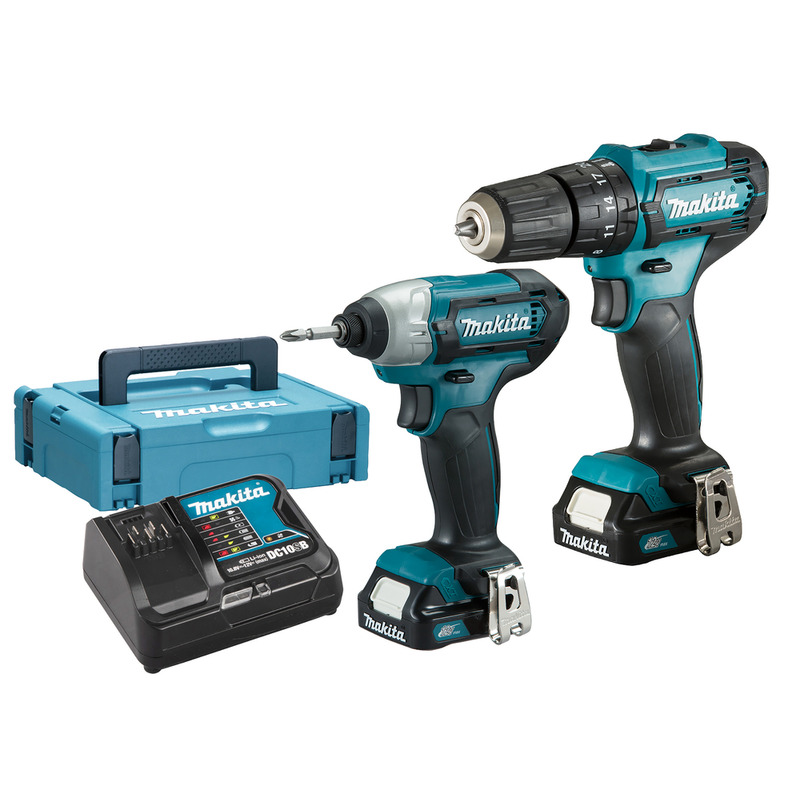

MAKITA CLX228AJ 10.8V / 12V MAX CXT SLIDE HP333D COMBI DRILL & TD110D IMPACT DRIVER TWIN KIT INC 2X 2.0AH BATTERIES, DC10WD CHARGER & MAKPAC TYPE 1 CARRY CASE
Makita have recently re-branded their new 10.8v CXT 'Slide' range to 12v MAX. This twin kit supersedes the popular CLX202AJ and includes the new HP333D Combi Drill with hammer function and the original TD110D Impact Driver. This kit comes complete with 2x BL1021B 12v MAX 2.0Ah slide batteries, DC10WD 10.8v / 12v MAX battery charger and a Makpac connector case (type 1) with plastic inlay.
Please note: All 10.8V CXT and 12V MAX CXT batteries, chargers and tools are compatible with both 10.8V CXT and 12V MAX CXT branded tools and accessories.

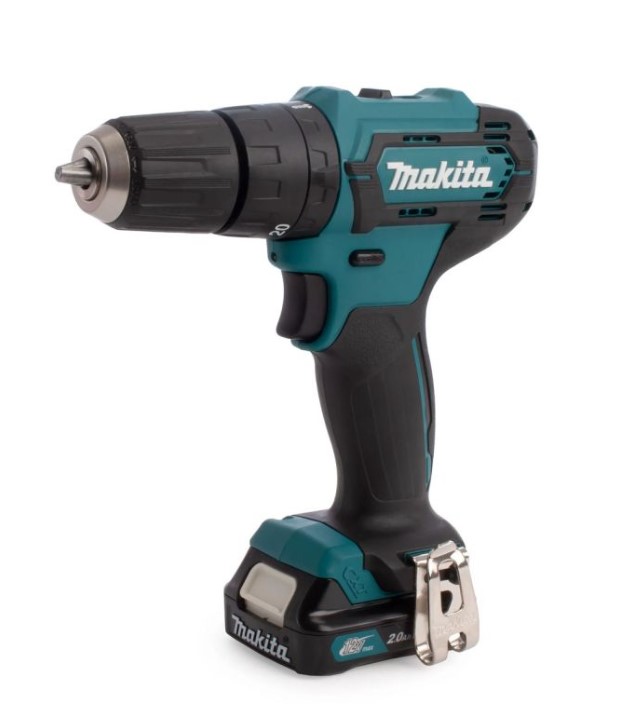

HP333D COMBI DRILL
FEATURES
Slide type Li-ion battery
Electric brake for increased user safety
2 mechanical gears
Variable speed control trigger
Keyless chuck
Equipped with Battery protection circuit: designed to protect the battery from damages due to over discharge, high temperature or overload current
Forward and reverse trigger
LED job light
Ergonomic soft grip
Compact overall length 193mm
Improved durability under load due to change in bearing type
SPECIFICATION
Voltage: 10.8V / 12V MAX
Soft Application Max Torque (Nm): 14
Hard Application Max Torque (Nm): 30
Torque Settings: 18 + Drill
Brake Type: Electric
No. of Gears: 2
LED Job Light: Yes / Pre-glow & After-glow
Battery Capacity Indicator: No
Battery Compatibility: 12V MAX CXT Slide Li-Ion
Rotation: Forward / Reverse
Variable Speed Control Trigger: Yes
No Load Speed (RPM) High: 0-1700
No Load Speed (RPM) Med: N/A
No Load Speed (RPM) Low: 0-450
Chuck Type: 3-Jaw / Single Sleeve Keyless
Chuck Capacity (mm): 10
Screw Capacity: Machine Screw (mm): 6
Screw Capacity: Wood Screw (mm): 5.1 x 63
Drill Capacity: Concrete (mm): 8
Drill Capacity: Metal (mm): 10
Drill Capacity: Wood (mm): 21
Impact Rate (BPM) High: 0-25500
Impact Rate (BPM) Med: N/A
Impact Rate (BPM) Low: 0-6750
Overall Length (mm): 193
Net Weight (Approx. Kg) with 1.5/2Ah Batt: 1.1
Net Weight (Approx. Kg) with 3/4/5Ah Batt: 1.3
Brushless Motor: No

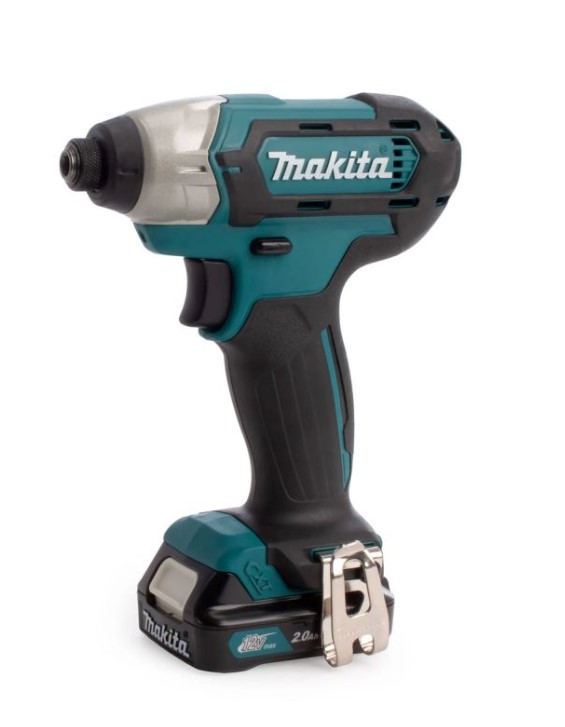

TD110D IMPACT DRIVER
FEATURES
Slide type Li-ion battery
Electric brake
Variable speed control trigger
Equipped with Battery protection circuit: designed to protect the battery from damages due to overdischarge, high temperature or overload current
Forward and reverse trigger
LED job light
Ergonomic soft grip
SPECIFICATIONS
Battery Type: 12V MAX Slide Li-Ion
Voltage: 10.8V / 12V MAX
Max Torque (Nm): 110
Brake Type: Electric
LED Job Light: Yes / Pre-Glow & After-Glow
Battery Capacity Indicator: No
Battery Compatibility: 10.8v CXT / 12V MAX CXT
Rotation: Forward & Reverse
Variable Speed Control Trigger: Yes
No Load Speed (RPM): 0-2600
Machine Screw Capacity: M4-M8
Standard Bolt Capacity: M5-M12
High Tensile Bolt Capacity: M5-M10
Coarse Thread Length Capacity (mm): 22-90
Max. Impacts Per Minute (ipm): 0-3500
Driving Shank: 1/4" Hex
Overall Length (mm): 153
Net Weight (Kg with 1.5/2Ah Battery): 1.0
Net Weight (Kg with 3/4/5Ah Battery): 1.2
Brushless Motor: No
NOISE & VIBRATION
Sound Pressure Level (LpA): 94 dB (A)
Sound Power Level (LWA): 105 dB (A)
Sound Uncertainty (K): 3 dB (A)
Vibration Emission (ah) (Using Max Capacity of Tool): 8.0 m/s²
Vibration Uncertainty (K): 1.5 m/s²
