Product Description
Features
Patented AUTOSTOP™ clutch provides best in class protection, preventing over rotating when losing control or in case of a stuck core
Integrated water line for wet coring that is compatible with the M18™ SWITCH TANK™ interchangeable sprayer and water supply system
On-board level sensor guides the user to achieve a straight and accurate finish whilst horizontal drilling
Core with confidence by delivering AC performance with a maximum core diameter capacity of 152mm wet & dry
2 speed gearing for a wide range of applications, with laser edged speed and capacity markings into the metal body
Speed 1: up to 75 mm diameter wet & dry coring at 1600 rpm
Speed 2: 76 to 152 mm diameter wet & dry coring 800 rpm
Patented AUTOSTOP™ clutch provides best in class protection, preventing over rotating when losing control or in case of a stuck core
On-board level sensor guides the user to achieve a straight and accurate finish whilst horizontal drilling
On-board pressure gauge allows user to optimise drilling speed in order to get the best lifetime of machine and accessory
On-board battery gauge allows the user to monitor battery capacity during entire drilling process
Integrated water line for wet coring that is compatible with the M18™ SWITCH TANK™ interchangeable sprayer and water supply system
1 1/4?UNC + 1/2?G core fitting to fit most common cores, with friction plate design allowing for easy core changes
Separately available core drill stand MXF DR255TV with 60 mm collar - 60 mm mount on the core drill fits most universal core stands
Building on the strengths of the FUEL™ technology, MX FUEL™ system reaches new levels of cordless performance. Focused on petrol performance, these tools deliver without the hazards associated with emissions, noise, vibration, and the frustrations of petrol maintenance
ONE-KEY™ tool tracking & security offers a free of charge cloud-based tracking network and inventory management platform for your tools. ONE-KEY™ also features a remote locking functionality
Specification
Battery Pack Capacity (AH) - 3.0
Drilling Capacity in Concrete 1st| 2nd Gear [MM] - 76 - 152/ 25 - 76
Full Load Speed [RPM] - 0 - 800/ 0 - 1600
No Load Speed (RPM) - 0 - 800/ 0 - 1600
No. of Batteries Supplied - 0
Recommended Battery - MXF CP203 S
Tool Reception - 1 ¼? UNC + ½? G
Vibration Drilling (M/S²) - 1.83
Weight [Without Battery] [KG] - 10,3
Weight with Battery Pack (EPTA) (KG) - 12.4 (MXF CP203)
Standard Equipment

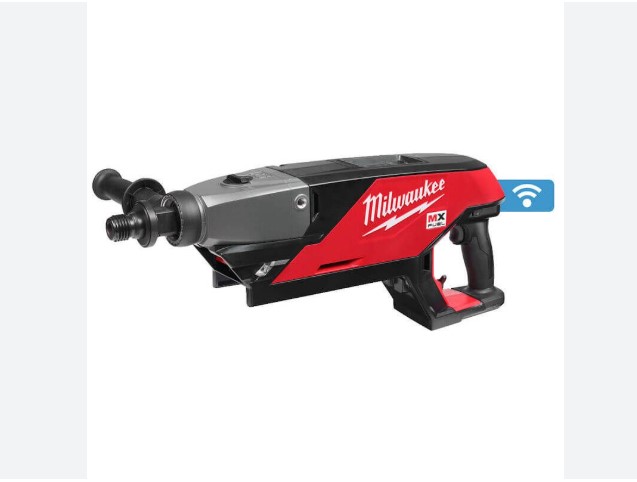

1x MXF DCD150 Diamond core Drill
1x Trigger Lock-On
1x Side handle
1x Carry case
