Product Description
WHAT'S IN THE BOX
1 x 240v Rotary Core Drill
1 x Geared chuck
1 x Chuck key
1 x Long side handle
1 x Drilling depth guide
DESCRIPTION

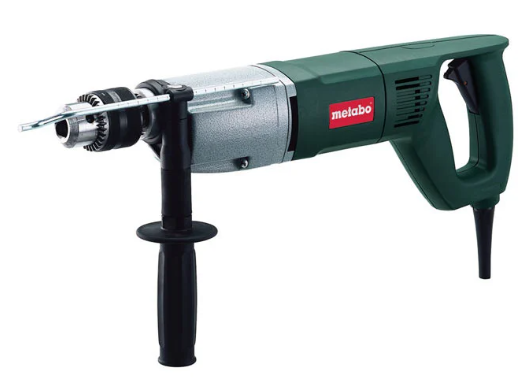

The Metabo BDE1100 240v Rotary Core Drill, a high-performance tool designed to meet the rigorous demands of the industrial world.
Introducing the Metabo BDE1100 240v Rotary Core Drill, a high-performance tool designed to meet the rigorous demands of the industrial world. This rotary drill is equipped with a powerful 1,100W motor that delivers an impressive 55 Nm of torque, and will drill up to a 152mm diamond core drill making it ideal for high-torque dependent applications.
Metabo S-automatic safety clutch: mechanical decoupling of the drive for safe working should the drill stop unexpectedly
The BDE1100 is not just about power, it's also about control and safety. The variable speed trigger allows for customized speeds to suit various application materials, ensuring optimal performance for every job. The drill also features a mechanical safety clutch for machine and operator safety, providing peace of mind during operation.
This rotary drill is built to last, with a robust die-cast aluminium gear housing for optimum heat dissipation and durability. It also features a two-speed gearbox and forward and reverse rotation, enhancing its versatility and usability.
The BDE1100 is designed for powerful drilling of larger diameters and stirring thick, liquid-like materials, making it a valuable tool for a wide range of tasks. The auxiliary handle ensures comfortable operation and added safety, making it a reliable choice for both professionals and DIY enthusiasts.
The Metabo BDE1100 110v Rotary Core Drill comes with a geared chuck, chuck key, long side handle, and a drilling depth guide, providing everything you need to get started on your next project. Trust in the quality and reliability of Metabo tools and purchase the BDE1100 today.
Metabo BDE 1100 240V: Large High Torque Rotary drill
Robust die cast aluminium gear housing for optimum heat dissipation and durability.
Vario (V)-Electronics for working at customised speeds to suit various application materials.
Two-speed gearbox.
Metabo S-automatic safety clutch: mechanical decoupling of the drive for safe working should the drill stop unexpectedly.
Forward and reverse rotation.
Suitable for powerful drilling of larger diameters and for stirring thick, liquid-like materials.
Comfortable operation and safety through auxiliary handle.
Metabo BDE 1100 240V: Large High Torque Rotary drill
Characteristics
Rated input power 1100 W.
Output power 620 W.
Drill steel 16 / 10 mm.
Drill- soft wood 40 / 25 mm.
No-load speed 0 - 640 / 0 - 1200 rpm.
Revolutions at rated load 430 / 800 rpm.
Gears 2.
Maximum torque 55 / 22 Nm.
Collar diameter 43 mm.
Chuck capacity 3 - 16 mm.
Drill spindle thread 5/8 " - 16 UN.
Weight (without power cable) 4.3 kg.
Cable length 4 m.
Vibration
Drilling in metal 4 m/s².
Uncertainty of measurement K 1.5 m/s².
Noise emission
Sound pressure level 85 dB(A).
Sound power level (LwA) 96 dB(A).
Uncertainty of measurement K 3 dB(A).
