Product Description
What's in the box

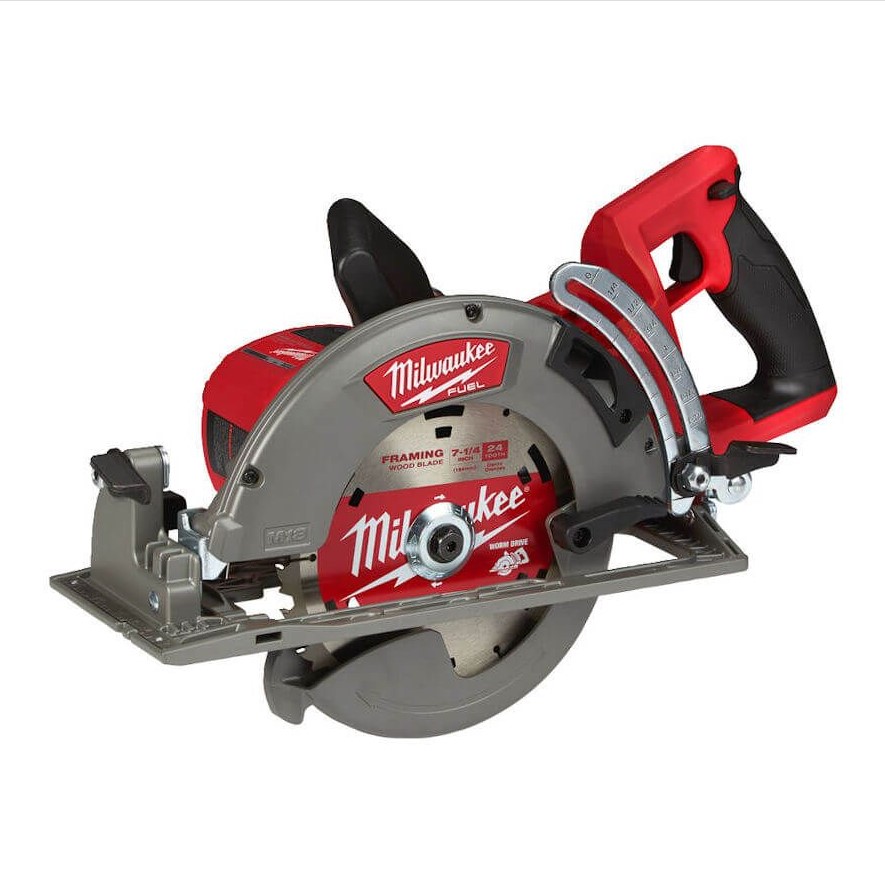

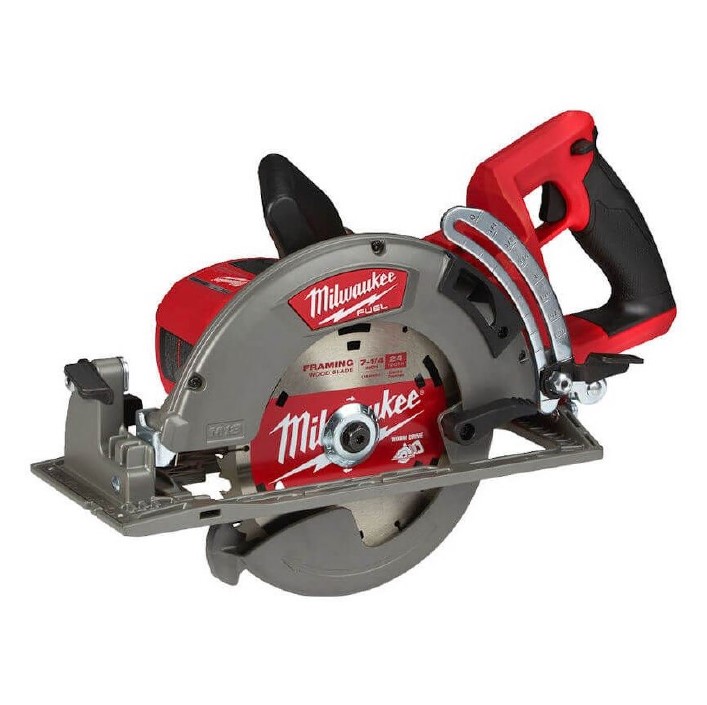

1x M18 FUEL FCSRH66 18v 190mm Rear Handle Circular Saw Body Only
1x Blade
1x Wrench
1x Dust Extraction Adapter

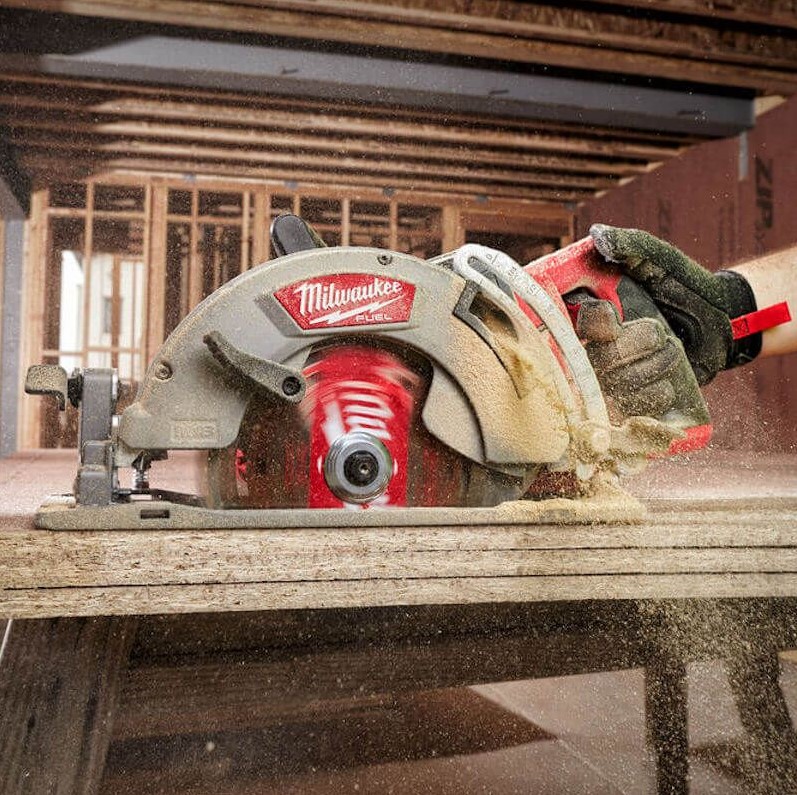

The M18 FUEL FCSRH66 18v 190mm Rear Handle Circular Saw delivers the power to rip cut at the same feed rate of an equivalent AC circular saw, with the ability to cross cut up to 570 pieces of 90 mm x 45 mm pine stud on one 12.0Ah battery charge (batteries sold separately). Rear handle design circular saw with blade left allows the user excellent cut line visibility. With integrated LED light for workspace illumination.
Supplied body only. Batteries and chargers are sold separately.
FEATURES
Delivers the power to rip cut at the same feed rate of an equivalent AC circular saw, with the ability to cross cut up to 570 pieces of 90 mm x 45 mm pine stud on one 12.0 Ah battery charge
The HIGH OUTPUT system of tools elevates the M18 FUEL technologies to a new level and delivers extended performance and extended run time. These tools are designed to maximise the partnership with HIGH OUTPUT™ batteries
Rear handle design circular saw with blade left allows the user excellent cut line visibility

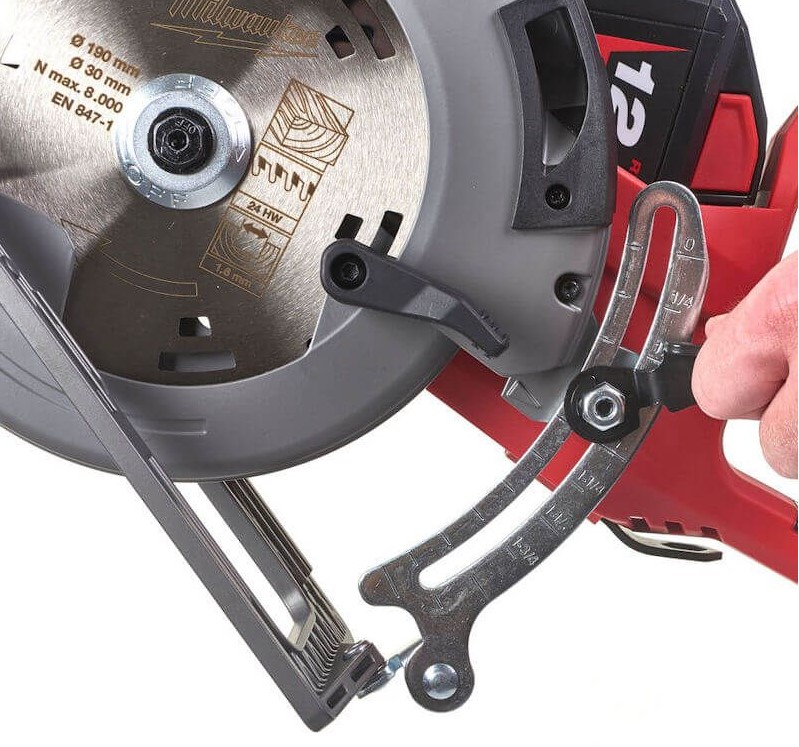

190 mm blade which gives a 66 mm depth of cut, enabling the saw to cut 3 stacked OSB boards
Durable metal rafter hang hook for work space management and safety
Vacuum adaptor supplied fits directly to all MILWAUKEE dust extractors
Magnesium shoe reduces weight and maximises durability
Integrated LED light for workspace illumination

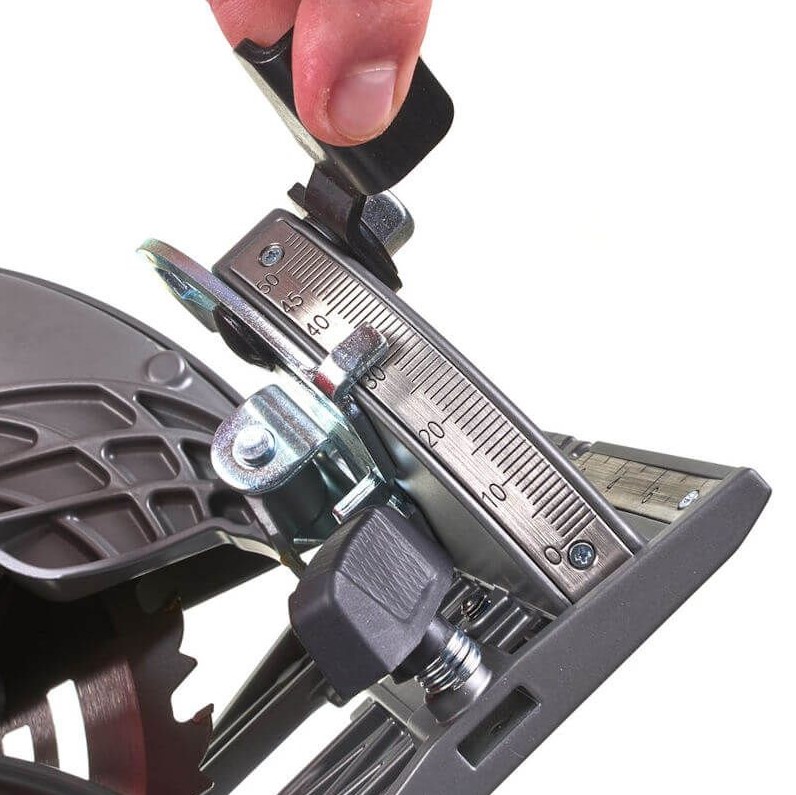

53° bevel capacity
Flexible battery system: works with all MILWAUKEE M18 batteries
SPECIFICATION
Bevel Capacity (°): 0 - 53
Blade Diameter (mm): 190
Bore Size (mm): 30
Max. Cutting Depth 45° (mm): 48
Max. Cutting Depth 50 Degrees [mm]: 45
Max. Cutting Depth 90° (mm): 66
No Load Speed (rpm): 5800
NOISE & VIBRATION
Sound Power Level (Lwa)(Db(A)): 106.88
Sound Power Level Uncertainty (Db(A)): 3
Sound Pressure Level (Lpa)(Db(A)): 95.88
Sound Pressure Level Uncertainty (Db(A)): 3
Vibration Sawing Of Wood [m|s²]: 1.36
Vibration Sawing Of Wood Uncertainty [m|s²]: 1.13
