Product Description
What's in the box
1x FMS190 Mitre Saw Body Only
1x 190mm Blade

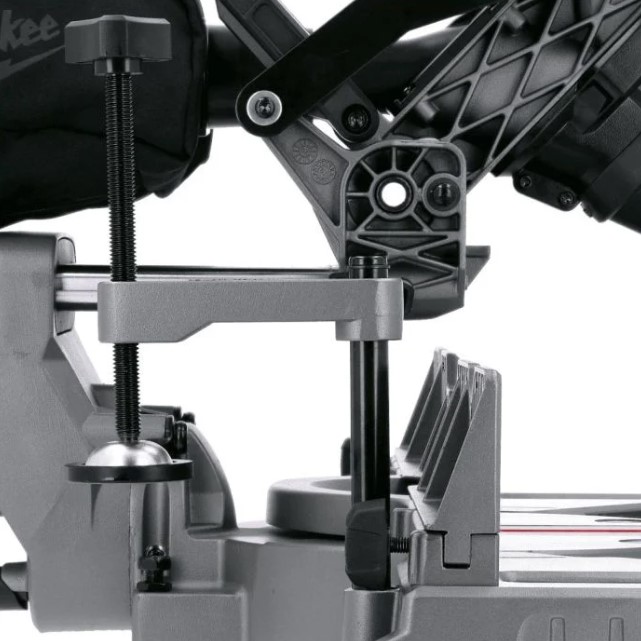

1x Clamp
1x Dust Bag
REPLACEMENT BLADE 4932471314 40 Tooth
The M18 FUEL FMS190 has a Brushless POWERSTATE™ motor for up to 2x longer motor life and up to 25% more power. Featuring a quick release bevel setting that allows the simple setting of bevel angles to the left and right. Integrated carry handle allows easy transportation on and off the jobsite.
Supplied body only - batteries and chargers sold separately. Includes a 190 mm blade that delivers accurate cut capacities
FEATURES
Brushless POWERSTATE™ motor for up to 2x longer motor life and up to 25% more power
REDLINK PLUS™ intelligence system delivers an advanced digital overload protection for tool and battery and uniquely enhances the tool performance under load
REDLITHIUM™ battery pack provides superior pack construction, electronics and fade-free performance to deliver more run time and more work over pack life

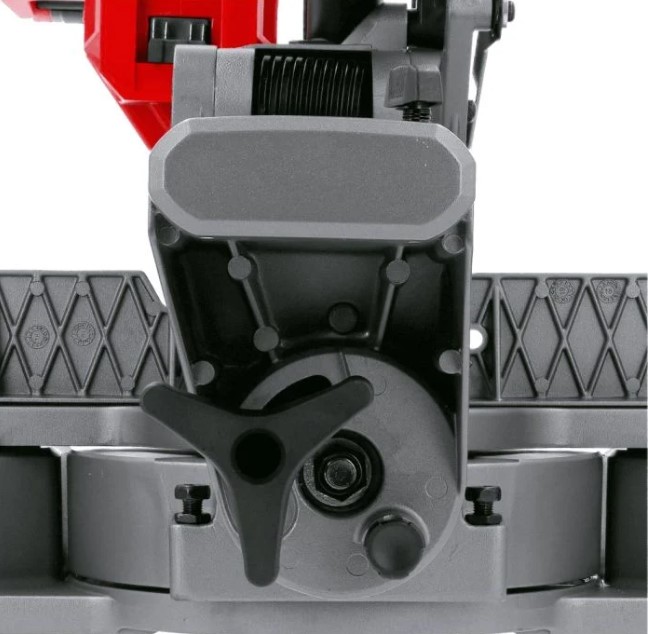

Quick release bevel setting allows the simple setting of bevel angles to the left and right
Large sliding fences gives maximum support to the material being cut providing stability and accuracy
Up to 299 cuts in 38 mm 89 mm soft wood with a 5.0Ah battery (sold separately) gives the ability to work a full day without recharging the battery
Light weight and portable at only 12.7 kg
Integrated carry handle allows easy transportation on and off the jobsite
Steel detent plate with preset angles gives repeatable accurate cuts
LED light to illuminate the work piece and cut line in low light conditions
Flexible battery system: works with all MILWAUKEE® M18™ batteries
SPECIFICATION
Article Number: 4933459619
Voltage: 18v
Bevel Capacity Left (°): 48
Bevel Capacity Right (°): 48
Blade Diameter: 190 mm
Bore Size: 30 mm
Max. Cutting Capacity 45° Mitre / 45° Bevel: 152.7 x 39.3 mm
Max. Cutting Capacity 45° Mitre / 90° Bevel: 152.7 x 55.4 mm
Max. Cutting Capacity 90° Mitre / 45° Bevel: 215.5 x 39.3 mm
Max. Cutting Capacity 90° Mitre / 90° Bevel: 215.5 x 55.4 mm
Max. Cutting Capacity At Fence 0° Mitre / 0° Bevel: 90.9 x 21.8 mm
Max. Cutting Capacity At Fence L45° Mitre / 0° Bevel: 90.9 x 20.3 mm
Max. Cutting Capacity At fence R45° Mitre / 0° Bevel: 90.9 x 17.8 mm
Mitre Capacity Left (°): 48
Mitre Capacity Right (°): 48
No Load Speed: 5000 rpm
