Product Description

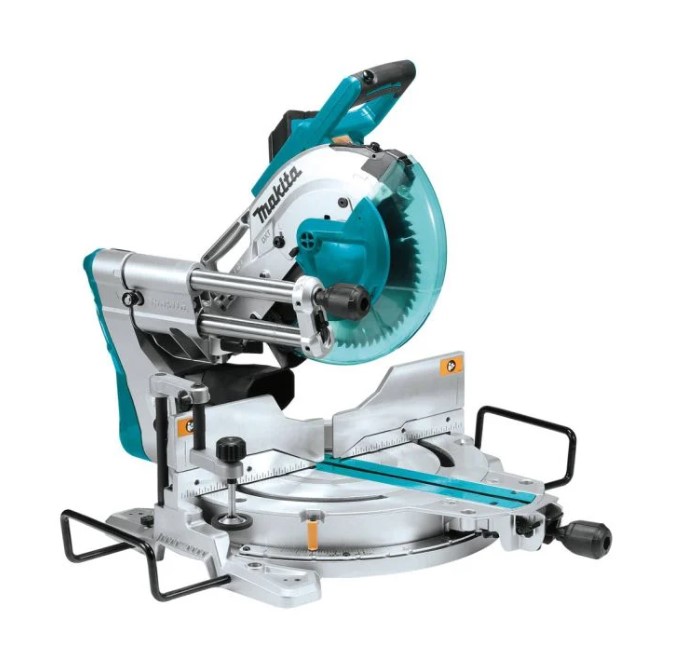

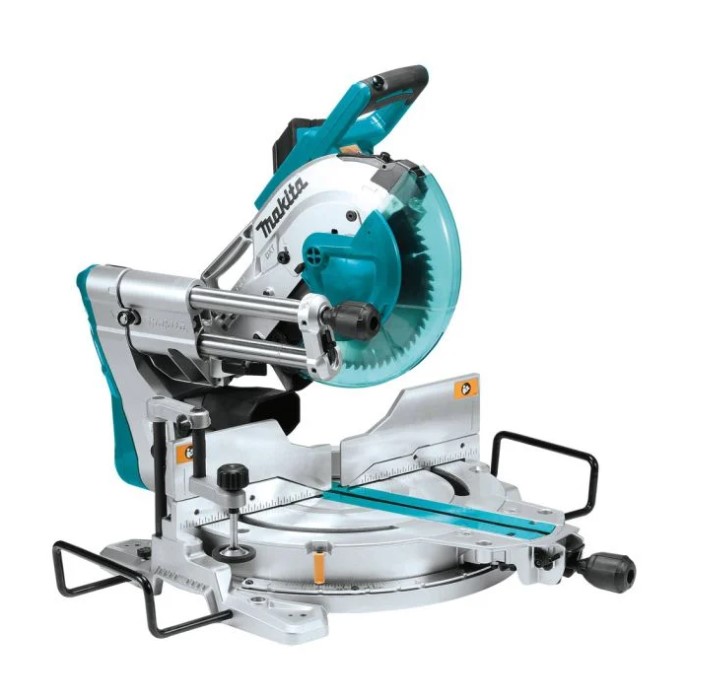

The Makita LS1019L 10" Double Bevel Sliding Compound Mitre Saw with Laser guide combines capacity, accuracy and efficient dust extraction in a more compact size, with a unique 2-Steel Rail Sliding System that offers a reduced footprint for operation flush against a wall. The innovative direct-drive gearbox and guard system is engineered for increased vertical cutting capacity - the largest in its class. The saw mitres 0° to 60° left and right, with positive stops at 0°, 15°, 22.5°, 31.6°, 45° and 60° (left or right). The bevel lock is located in the front of the saw for easy access and quick adjustments from 0° to 48° (left and right).
The saw is powered by a 15 AMP direct drive motor with soft start, a key point of difference. Direct drive enables smoother start-ups and consistent, constant power with no belts to slip or replace. The electric brake provides added convenience. In addition, the electronic speed control maintains constant speed under load for smoother, higher-quality cutting.
Additional features include a see-through blade guard system for greater visibility of the blade and line-of-cut. The built-in laser indicates the line-of-cut whether the blade is turning or not, and offers micro-adjustments for precise “left-of-blade” or “right-of-blade” cutting. For improved dust extraction it has an improved dust collection capability for use with a bag (included) or extractor (sold separately). It also has a large-sized aluminium base that improves the stability of cutting stock for more efficient cutting.
FEATURES

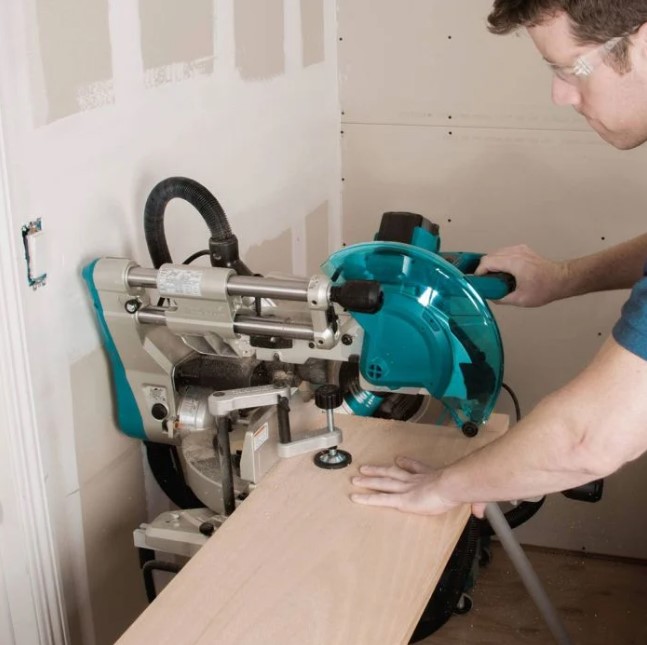

Unique 2-Steel Rail Sliding System design offers single slide-glide operation; reducing saw's footprint and allowing operation flush against a wall
Increased capacity for up to 12" crosscuts at 90°
In-front bevel lock for convenient operation
Dual dust collection ports provide excellent dust extraction performance
Innovative direct drive motor and guard system is engineered for increased vertical cutting capacity
Linear ball bearing system engineered to deliver "dead-on" accurate cuts
Less weight (26.3 Kg) and the most compact design in its class for easy jobsite portability
Powerful 15.0 AMP direct drive motor requires less maintenance and delivers 3,200 RPM
Large-sized aluminium base improves stability of material for efficient cutting
Soft start suppresses start-up reaction for smooth start-ups and longer gear life
Mitres 0-60° left and right; bevels 0-48° left and right
Positive mitre stops at: 0°, 15°, 22.5°, 31.6°, 45°, and 60° left or right
Electronic speed control maintains constant speed under load for smoother, higher quality cutting
Integrated upper and lower tall fence system offers added rigidity for more precise mitre and bevel cuts

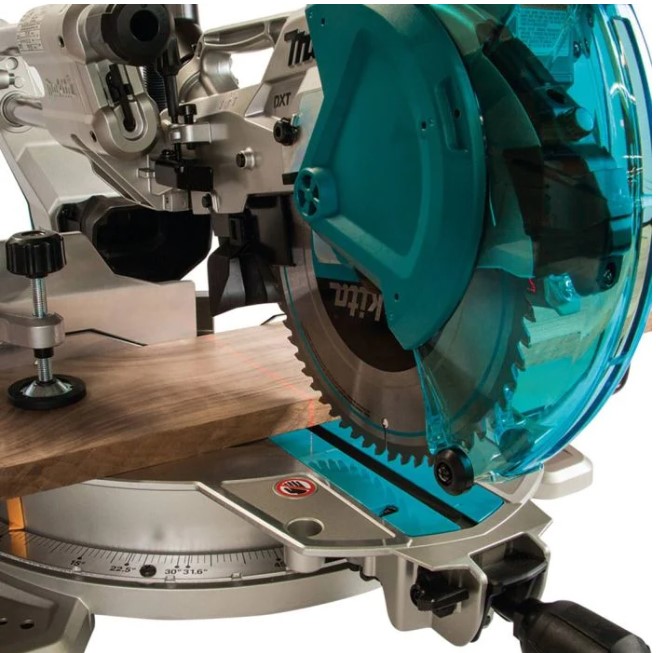

Built-in laser clearly indicates line-of-cut whether blade is turning or not; on-off switch and micro-adjustments for precise "left-of-blade" or "right-of-blade" cutting
Ergonomic rubberised horizontal D-handle design for better fit and added comfort
Replaceable stainless steel mitre scale features large and easy-to-read markings
Easy-to-read double bevel scale for more precise adjustments
See-through blade guard system for greater visibility of blade and line of cut
Easy blade changes for increased efficiency
Oversized trigger switch for better fit, added comfort and easier operation
Easy one-touch slide lock for convenience
Simple 90º turn-of-the-knob mitre angle lock/unlock mechanism
DXT (Deep and Exact Cutting Technology)
SPECIFICATION
Input Wattage: 1,510 W
Blade Diameter: 260 mm
Bore Diameter: 30 mm
No Load Speed: 3,200 rpm
Max Mitre Range: 60°to 60°(L-R)
Max Bevel Range: 48°to 48°(L-R)
Net Weight: 26.3 Kg
NOISE & VIBRATION
Sound Pressure: 91 dB(A)
Sound Power: 101 dB(A)
Sound K Factor: 3 dB(A)
Vibration: 2.5 m/s²
Vibration K Factor: 1.5 m/s²
Available in 110v & 2
