Product Description
WHAT'S IN THE BOX
1x DLS714 Cordless Mitre Saw Body Only
1x TCT Saw Blade
1x Dust Bag
1x Holder Set
1x Hex Wrench
1x Vertical Vice
1x Triangular Rule

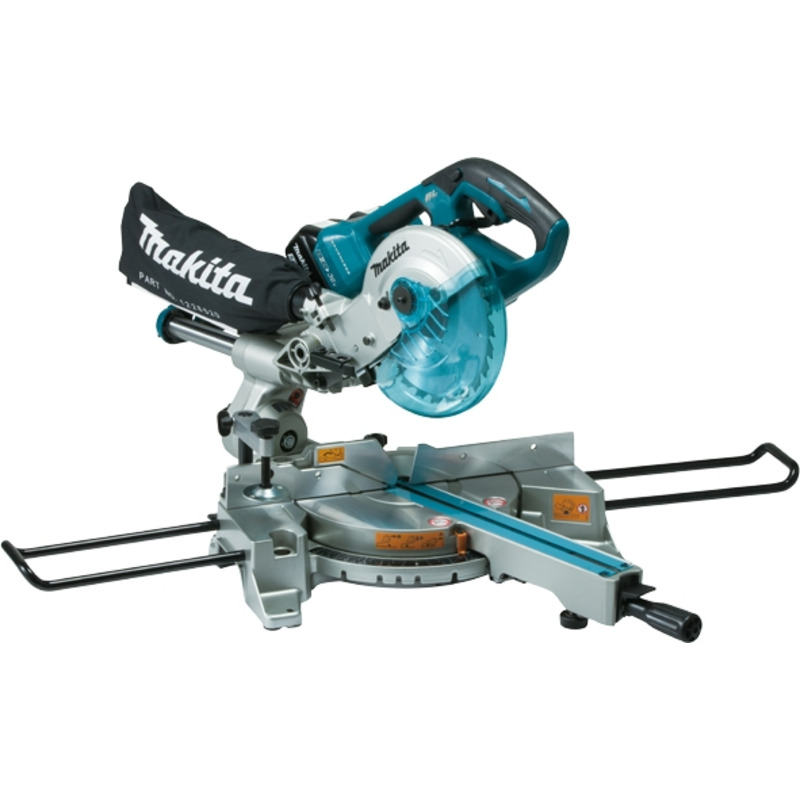

MAKITA DLS714NZ TWIN 18V CORDLESS BRUSHLESS SLIDE COMPOUND 190MM MITRE SAW BODY ONLY
The newest brushless tool in the Makita range, the cordless Slide Compound Mitre Saw DLS714, is powered by 2x 18v Li-ion batteries to supply enough energy to the powerful 36v DC Brushless motor drive system. By using the high powered 36v DC Brushless motor, it enables the user to achieve a cut as fast as if you were using a corded slide compound mitre saw. With its lightweight design, not only does it take up less space when in use, it can easily be transferred from job-site to job-site with no issues.
Makita offer a new feature to make this Mitre Saw stand out even more - Automatic Torque Drive. This allows the machine to automatically change the cutting speed according to the load condition, giving the user the best cut at the best operational speed possible.
MAKITA 36V MITRE SAW FEATURES
Automatic Torque Drive automatically changes the cutting speed according to load condition for optimum operation (ie high speed rotation mode for light duties, high torque mode for heavy duties)
Double slide mechanism - 4 self-lubricating linear ball bearings are used for smooth and precise cutting
Easy to Grip handle with anti-slip elastomer surface provides sure but comfortable grip for easy job site portability
Lightweight and compact - The double sliding mechanism makes it lighter and more compact, requiring less work space and allowing quick storing and easy transport to job-sites
LED indicator panel for battery fuel and indication of automatic speed control
Soft start to minimize start-up shock and makes the tool start smoothly
Electric brake stops the blade gently but fast, allowing users to quickly resume operation
Dust bag provided for dust collecting
Powered by two 18v Li-ion batteries in series to supply energy to the powerful 36V DC motor drive system
Brushless motor
Soft start
Equipped with Battery protection circuit: designed to protect the battery from damages due to over-discharge, high temperature or overload current
Cuts up to 300mm in a single pass
MAKDLS714Z SPECIFICATION
Voltage: 18v + 18v (36v)
Battery Type: LXT Lithium-Ion
Blade Diameter: 190 mm
Blade Body Thickness: 1.3 mm - 2.0 mm
Bore (Arbor) Diameter: 20 mm
Max. Mitre Angle: Left 47° / Right 57°
Max. Bevel Angle: Left 45° / Right 5°
No Load Speed: 5,700 rpm
Dimensions (L x W x H): 655 mm x 430 mm x 445 mm
Net Weight (inc Battery): 13.5 kg
