Product Description
WHAT'S IN THE BOX
1x DLS110 Cordless Mitre Saw Body Only
1x TCT Saw Blade
1x Dust Bag
1x Hex Wrench
1x Vertical Vice
1x Triangular Rule

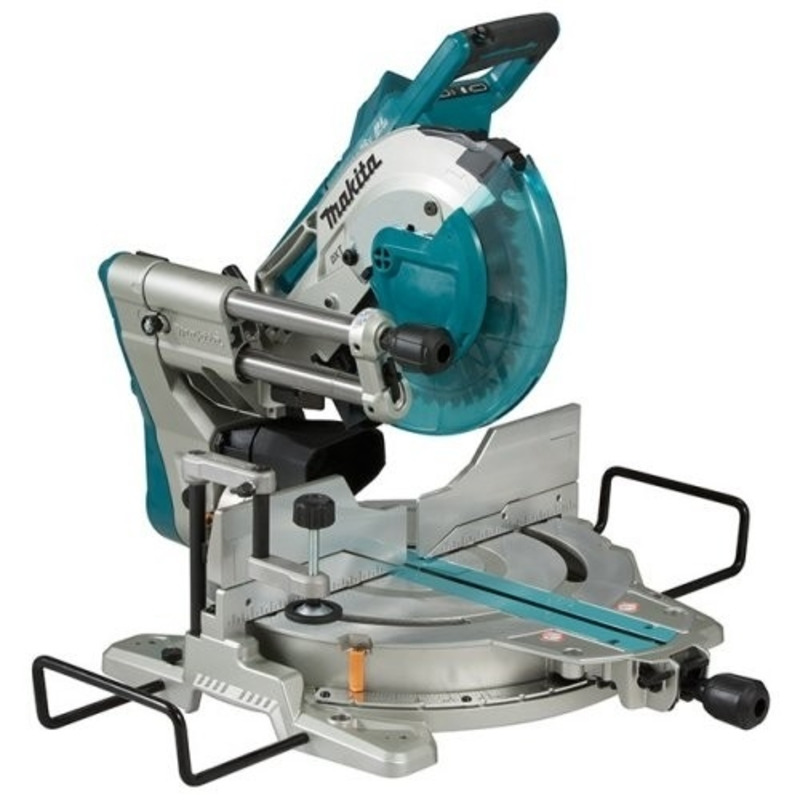

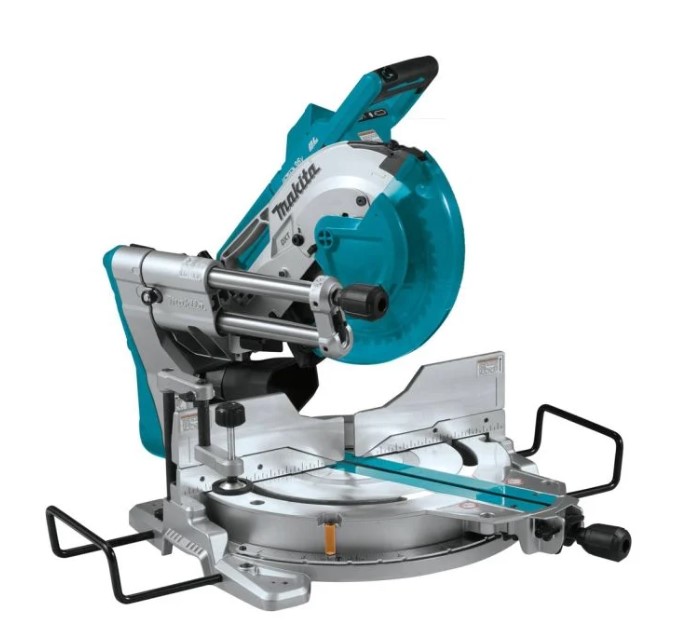

The Makita DLS110 is a 260mm (10-1/4") cordless slide compound mitre saw powered by two 18V Li-ion batteries in the LXT series. It has been designed based on the LS1019 mains machine.
Sold as body only, this tool requires 2x 18v LXT Lithium-Ion batteries (2x BL1850B 5.0Ah or BL1860B 6.0Ah recommended for best runtime). Batteries and chargers sold separately.
FEATURES
Brushless DC motor with high power to weight and size ratio
Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
Single sliding system enables smooth operation to produce superior cuts.
Professional cutting design and performance (similar to corded) with cordless versatility
Automatic torque Drive Technology (ADT) feature adjusts the torque and speed according to the load condition, enabling rapid movement between high speed and high torque applications
Rail forward design enables saw to be placed against wall to maximize effective workspace
3 stage gear reduction system greatly increases capacity when cutting vertical baseboard or nested crown molding
Integrated guide fence and lower fence increases rigidity and support of materials
Fence design allows fence to be secured to holders to prevent damage and/or loss
Front bevel knob enables easy adjustment without reaching for operator convenience and precise setting of bevel angle
Electric brake stops blade 3-5 seconds after trigger is released for increased operator safety
Soft start feature gradually increases speed to eliminate start up shock
LED charge level indicator displays approximate remaining battery power
Bevel capacity of 48 Degree left or right with positive stops at 0, 22.5, 33.9 & 45 Degree
Mitre capacity of 60 Degree left or right with positive stops at 0, 15, 22.5, 31.6 & 45 Degree
Large mitre table ideal for use with wide materials
Easy to operate mitre angle lock with free spin releasing lever and locking lever
Improved dust collection with dual dust collection ports and dust extractor connectivity
2-stage safety switch for increased operator safety
Ergonomic Horizontal Soft Rubber Grip design for vibration absorption and comfortable operation
SPECIFICATION
Voltage: 18v + 18v (36v)
Battery Type: LXT Lithium-Ion
Blade Diameter: 260 mm
Blade Body Max Thickness: 3.2 mm
Bore (Arbor) Diameter: 30 mm
Max. Mitre Angle: Left 60° / Right 60°
Max. Bevel Angle: Left 48° / Right 48°
No Load Speed: 4,400 rpm
Dimensions (L x W x H): 805 mm x 644 mm x 660 mm
Net Weight (inc Battery): 27.3 kg
