Product Description
Functions
Mobility, versatility and best results – perfectly combined.

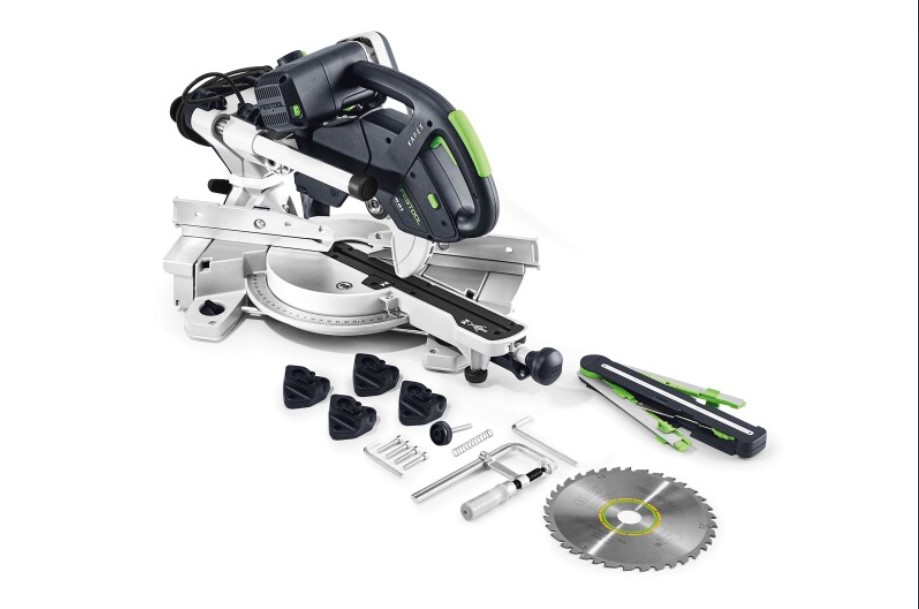

The new KAPEX KS 60 dispenses with everything not needed for the job – such as every unnecessary gram of weight. With impressive features such as ergonomically positioned carrying handles, cord holder and transport safety device and an extremely compact design thanks to flush-mounted guide rods, this device makes no compromises in terms of precision and versatility – with a mitre angle on both sides of up to 60 degrees and an inclination angle on both sides of up to 46 or 47 degrees. The Festool twin-column guide with two bearings ensures that the saw blade is guided reliably and smoothly. A range of other clever details such as the LED spotlight, the pull-out extension table, the additional groove function and the bevel help to make the KAPEX KS 60 a perfect combination of mobility, versatility and optimum results.
Compact and lightweight, with ergonomic handles and cord holder

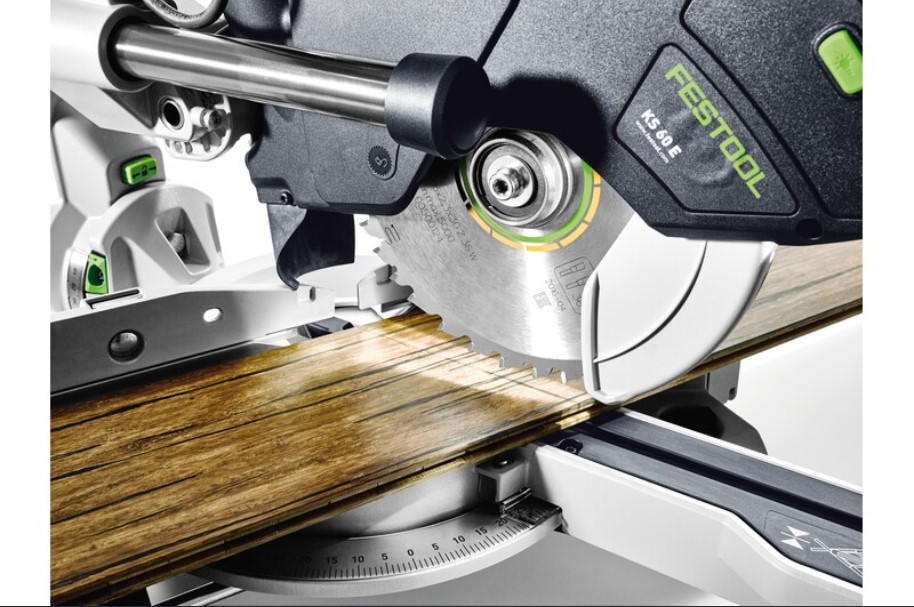

LED spotlight to show cutting lines precisely (included in the set or available as an accessory)
Bevel for producing interior and exterior angles
Inclination angle of up to 47°/46° on each side and mitre angle of up to 60° on each side
More mobile with the base frame: The UG-KAPEX base frame is a stand and a transport frame in one
Cutting depth limiter for rapid grooving

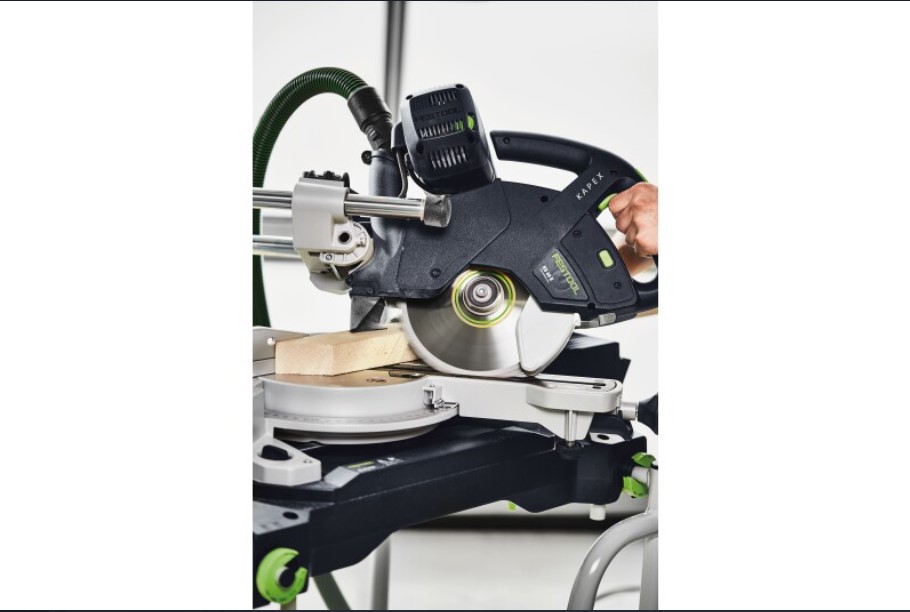

For a clean and healthy working environment: The extraction system in combination with a Festool mobile dust extractor sucks up the dust at its source
Always adapted to the working material: Festool saw blades are ideally adapted to the KAPEX KS 60 and the materials being used
Product highlights
Achieve ideal results more quickly:
Minimal waste – minimal material costs, thanks to the error-free transfer of the angle with the bevel and LED spotlight for optimum visibility of the scribe mark (included in the set or available as an accessory).
Convenient and safe:
Ideal for use on the move, whether on the ground floor or the third floor, thanks to its compact design, low weight, ergonomic configuration of the hand grips, integrated cord holder and transport safety device.
Innovative down to the finest detail:

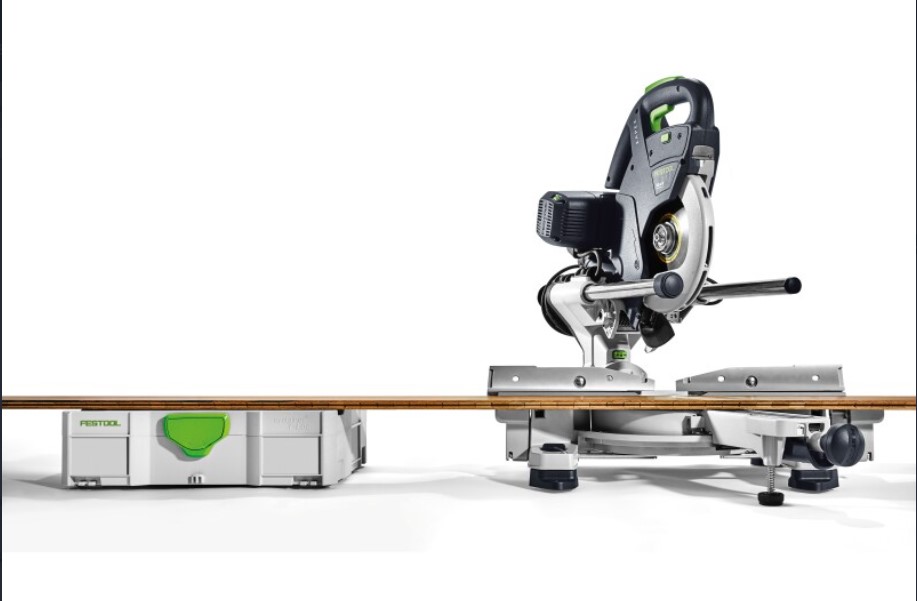

Without needing to retrofit the saws or use complex material combinations. Particularly for long workpieces thanks to swivelling to 60° on both sides and tilting to 47°/46° on both sides including integrated extension table.
Usage
Main applications
Ideal for mobile use in assembly applications
Cutting boards and panels up to 305 x 60 mm
Trimming strips, profiles and square timber up to 60 mm thick

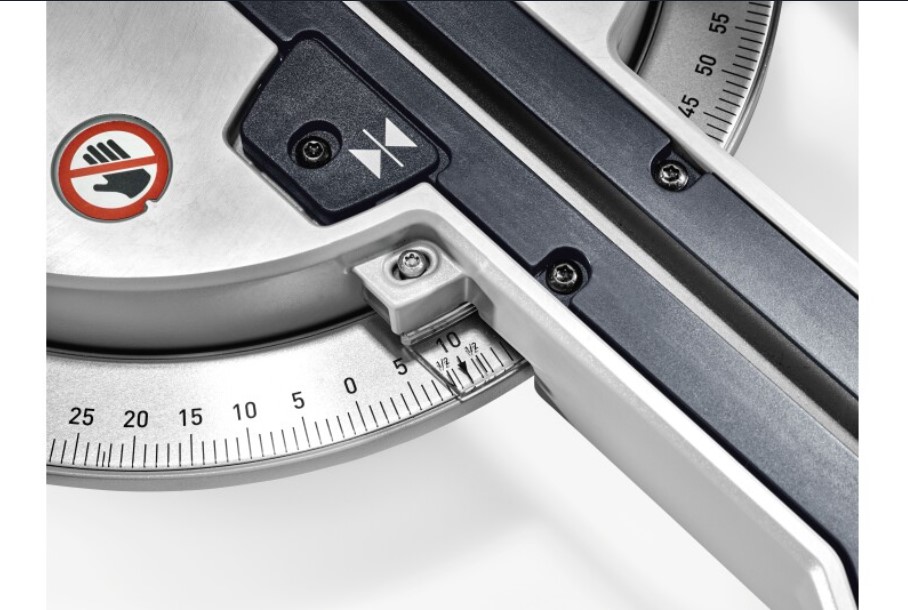

Precisely angled adjustment of skirting boards and cornices without calculations – in conjunction with the bevel
Technical Data
?
Power consumption1 200 W
Idle engine speed1 300 - 3 500 min?¹
Saw blade diameter216.00 mm
Cutting depth 90°/90°305 x 60 mm
Cutting depth at 45°/90°215 x 60 mm
Cutting depth 45°/45° (left)215 x 40 mm
Inclination angle47/46 °
Mitre angle60/60 °
Dimensions (W x D x H)661 x 475 x 430 mm
Dust extraction connection diameter27/36 mm
Cable length3.70 m
Cutting depth 60°/90°150 x 60 mm
Cutting depth 45°/45° (right)215 x 20 mm
Product weight without accessories17.90 kg
Transport weight incl. accessories21.89 kg
Drive typeMains
