Product Description
WHAT'S IN THE BOX
1x DWS777 Mitre Saw
1x 24 Tooth Saw Blade
1x Blade Allen Keys
1x Material Clamp
OVERVIEW

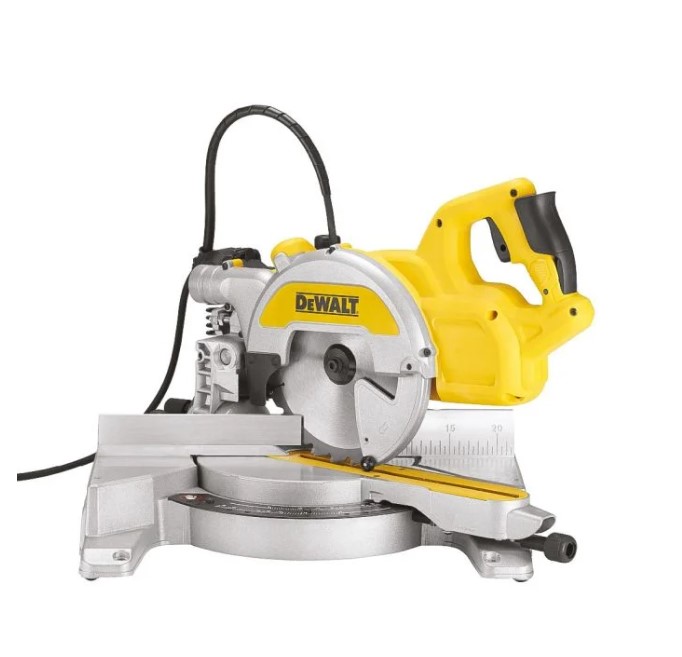

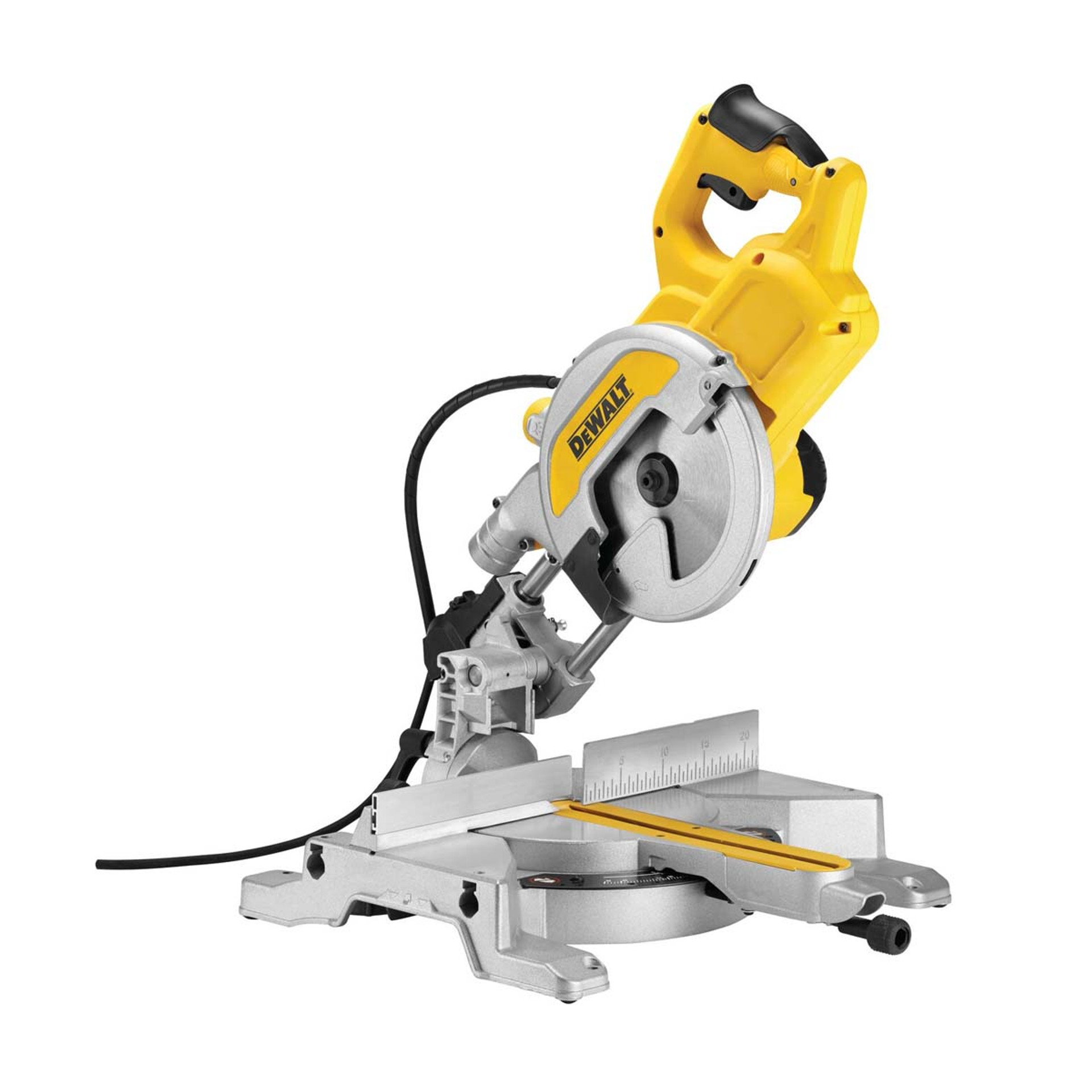

DEWALT DWS777 216MM CROSSCUT COMPOUND SLIDE MITRE SAW
The DeWalt DWS777 216mm Mitre Saw is the classic saw design improved and updated for the modern user. It has a new 1800 Watt motor for powerful cutting in all materials (1600 Watt Low Voltage version UK Only)
XPS Shadow line cut indicator provides fast accurate alignment of the blade while illuminating the work piece for increased productivity no adjustment required
FEATURES
The classic saw design improved and updated for the modern user
New 1800 Watt motor for powerful cutting in all materials (1600 Watt Low Voltage version UK Only)
XPS Shadow line cut indicator provides fast accurate alignment of the blade while illuminating the work piece for increased productivity no adjustment required
New Single Point Dust Extraction Airlock compatible
The base and fence have been machined to meet the accuracy requirements of the most demanding applications
Head lock function allows the head to be fixed, restricting the traverse function for trim applications and ease of transportation
Integrated positive mitre stops at 15°, 22.5°, 30°, 45°, quick release mitre mechanism up to 50°
Sliding left hand fence with measuring scale for improved material support and management
Compact internal rail design for huge cutting capacity in a highly transportable format
SPECIFICATION
Power Input: 1800 Watts
Power Output: 1100 Watt
Blade Speed: 6300 rpm
Blade Diameter: 216 mm
Blade Bore: 30 mm
Bevel Capacity: 48 °
Mitre Capacity [Right/Left]: 50/50 °
Cutting Capacity at 90°/45° (W x H): 173 x 62 mm
Cutting Capacity at 90°/90° (W x H): 270 x 62 mm
Cutting Capacity at 90°/90° (W x H): 270 x 60 mm
Cutting Capacity at 45°/90° (W x H): 189 x 62 mm
Cutting Capacity at 45°/90° (W x H): 190 x 60 mm
Cutting Capacity at 90°/45° (W x H): 270 x 48 mm
Max. Cutting Capacity at 45°/45°: 190x48 mm
Max. Depth of Cut [Saws]: 80 mm
Weight: 14.0 kg
Depth: 550 mm
Length: 490 mm
Height: 590 mm
NOISE & VIBRATION
Hand/Arm Vibration Cutting Wood: 2.1 m/s²
Uncertainty K1 Vibration: 1.5 m/s²
Sound Power: 104 dB(A)
Sound Power Uncertainty: 3.9 dB(A)
Sound Pressure: 93 dB(A)
Sound Pressure Uncertainty: 3 dB(A)
AVAILABLE IN 110V & 240V
