Product Description

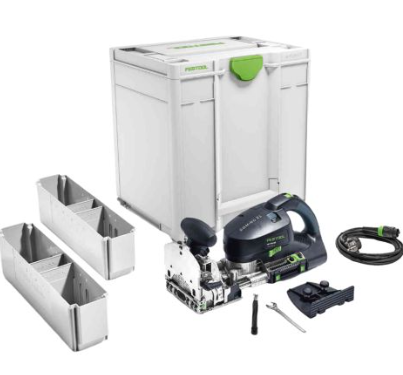

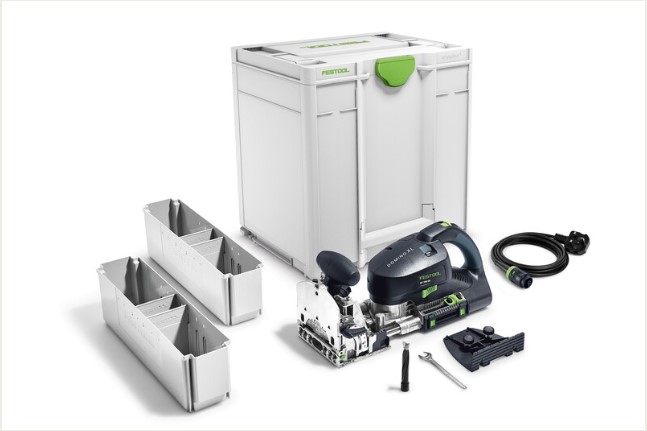

WHAT'S IN THE BOX
1x XL DF 700 EQ-Plus Joining Machine
1x DOMINO Cutter D 12
1x Additional Stop
1x Empty Dowel Box
1x Open Ended Spanner, WAF 12
1x Systainer SYS3 M 437
The special shape of the DOMINO in combination with expanding glue pockets and lateral longitudinal grooves gives the dowels a secure grip. You can use the Festool DOMINO XL DF 700 joining machine to effortlessly process dowels up to a dowel size of 14 x 140mm
Comes to the workpiece and not vice versa: DOMINO XL. Quick, simple, precise and extremely stable - with measurably shorter tooling times and up to 50% time-saving in comparison to stationary machines. The DOMINO XL is therefore ideally suited for furniture and door construction and solid wood joints.
HIGHLIGHTS
Achieve ideal results more quickly: Time savings of up to 50% in comparison with stationary machines on solid joints up to a dowel size of 14 x 140 mm
Convenient and safe: Unique patented pendulum routing principle enables smooth, accurate work as well as holes without any scorch marks
Systems get it done: DOMINO, cutter, dowel up to 14 x 140 mm, removable corner and surface connectors and compatible system accessories for virtually unlimited jointing possibilities
APPLICATIONS
Solid wood furniture in frame and tunnel design
Frame construction of house doors and interior doors
Manufacture of tables and chairs
Creation of stable mitre joints
Folded and profiled door frames in furniture construction
Connection of wide cornices (e.g. plates)
Frame and stand constructions in non-supported timber structure (exterior and interior area)
FEATURES
Patented routing principle unique to hand-held machines for accurate work with no kickbacks
Stops that are quick and easy to adjust, for accurate results
Maximum stability of joints up to a DOMINO size of 14 x 140 mm
Saves more time compared to a stationary machine
System accessories compatible with both DOMINO jointers
SPECIFICATION
Depth Stop for Routing Depth: 15 - 70 mm
Max. Routing Depth: 70.00 mm
DOMINO Slot Cutter Dia.: 8, 10, 12, 14 mm
Routing Height Adjustment: 10 - 50 mm
Mitre Routing: 0 - 90 °
Idle Engine Speed: 21 000 min?¹
Power Consumption: 720 W
Weight: 5.20 kg
Dust Extraction Connection Dia.: 27 mm
NOISE & VIBRATION
A-Weighted Sound Power Level, LWA: 94.00 dB(A)
A-Weighted Sound Pressure Level, LpA: 83.00 dB(A)
Uncertainty (Noise) K: 3.00 dB
Total Vibration Average, Ah: 2.50 m/s²
Uncertainty (Vibration) K: 1.50 m/s²
