Product Description
Key Information

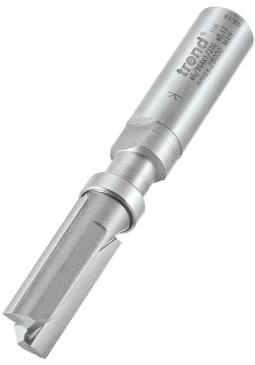

The Trend Guided Profiler features shank mounted bearing guides, perfect for use with a router mounted above or below a table.
Designed for profiling and rebating applications, ensuring precise and consistent results.
Not intended for plunge cutting or grooving, with a 3mm maximum overlap recommended before trimming.
Perfect for template making, offering a reliable and efficient solution for woodworking needs.
Models like the 46/910, 46/911, and 46/91 have a shorter cutter length for use on thin boards.

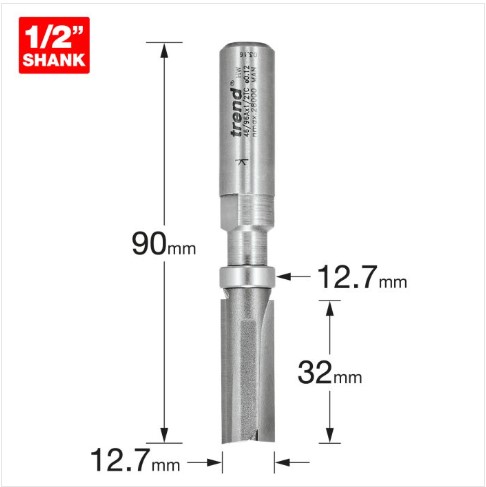

The Trend Guided Profiler 46/96AX1/2TC features a 12.7mm diameter, 32mm cut length, and 90mm overall length.
Technical Specification
Sub-TypeRouter Bits
TypeRouter
Diameter12.7mm (1/2 Inch)
Cut Length32mm (1 1/4 Inch)
Overall Length90mm
Bearing12.7mm
Angle90 Degrees
Neck Height Relief7mm to Bearing
Max. Template Thickness12mm
Shank Diameter1/2 Inch
