Product Description
OVERVIEW

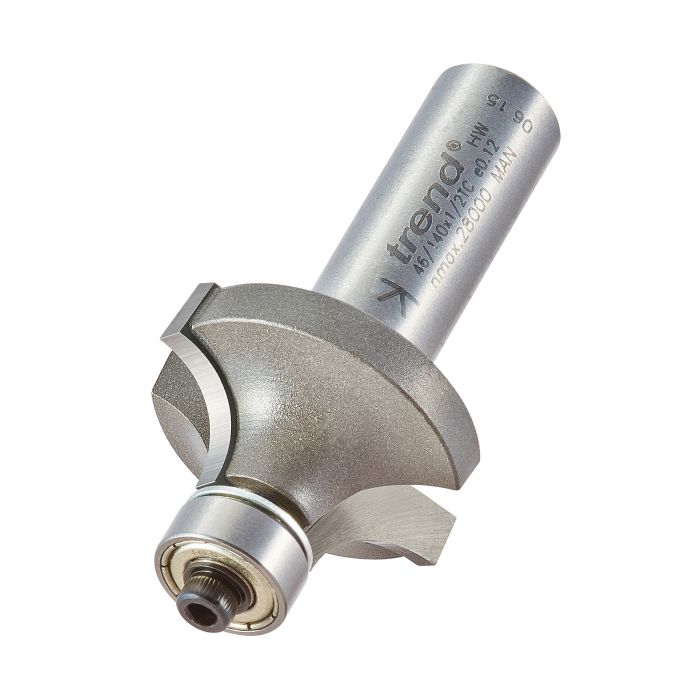

TREND 46/140X1/2TC BEARING GUIDED OVOLO CUTTER 9.5MM RADIUS
WITH ALTERNATIVE BEARING
Self-guiding cutters for rounding over edges do not require a side fence.
They are supplied with two bearings.
Use the larger bearing for a round-over.
If the cutter is lowered, a top quirk can be produced.
A full round/bullnose for stair treads can also be produced by taking a second pass from the opposite side of the workpce.

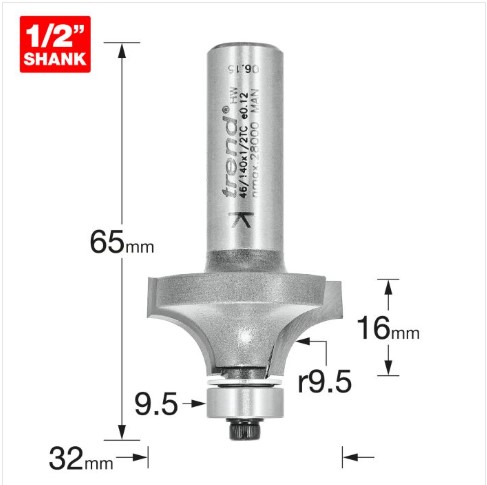

Specification-
D=32 mm
C=16 mm
B=9.5 mm
B2=12.7 mm
R=9.5 mm
Shank Diameter=1/2 inch
