Product Description

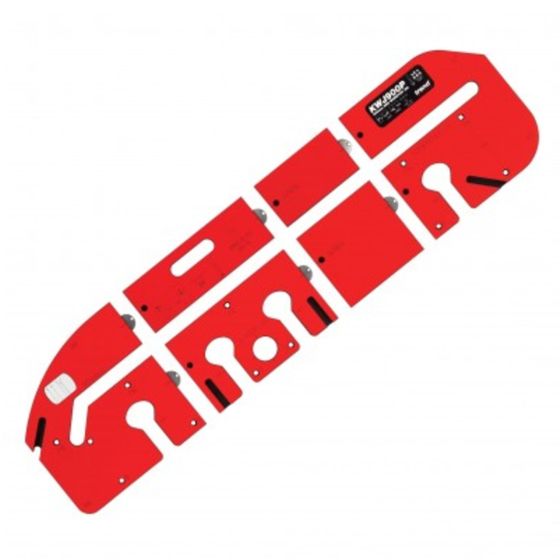

TREND KWJ900P PRO MULTI-MATERIAL WORKTOP JIG 900MM
FEATURES
Use with worktops of up to 900mm
Front edge setting: All settings are done from the front edge, eliminating any discrepancies from scribing or when using non-standard width worktops
Easy set reference window: Fast setup for any backset - simply align to a measured line
Different jig options: 660m long (500mm maximum joint length) for narrow bathroom vanity tops, 990mm long (750mm maximum joint length) for standard kitchen worktop installations, 1190mm long (900mm maximum joint length) for wider breakfast bars and peninsular joints, and standalone connector bolt, hinge and tap hole jig
Adaptable modular jig can be built to different size as required, allowing access where there is work space limitations
Flush edge compatibility: Allows worktops to be cut flush with door faces for handleless contemporary styles, without needing additional measuring or marking up
Single pass joint cutting on narrower backsets with thinner worktops: This minimises strain on the router and extends cutter life
Fast jointing: Cuts a full male and female joint in 15 minutes, including setup time
Multiple worktop material compatibility: including compact laminate, composite, solid wood and chipboard laminate
No set worktop width restriction: no need for alignment pins for worktop widths
Frustration free setup: the setup process is simple and intuitive - just measure, mark, clamp and cut
Offset cams: unique backset wedges for consistent easy setting
Edge profile compatibility: covers square edge, small radius, Postform radius and bullnose profiles
Portability: jig breaks down to easily portable components for storage and easy transportation
SPECIFICATION
Length: 1190 mm
Width: 335 mm
Thickness: 12 mm
Weight: 5.46 kg
End Cut: 45 degrees
Corner Radius: 40 mm
Corner Radius: 100 mm
Corner Radius: 400 mm
Corner Mitre Joint: 45 degrees
Female Cut Material Width Loss (Inset): Variable
