Product Description

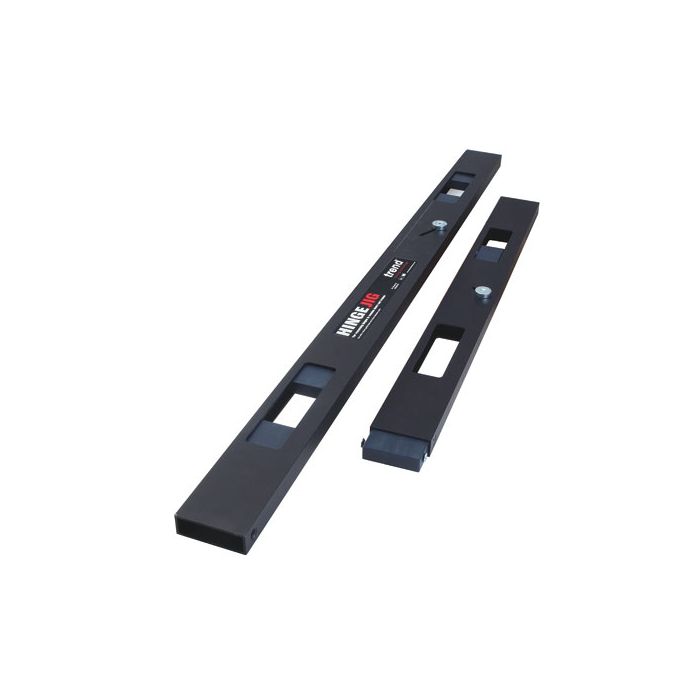

Trend Hinge Jig A - Two piece jig for quick, accurate repeatable fitting of hinges to doors and frames
The two part Contractor Hinge Jig is a portable template set designed for recessing hinges in wooden doors & frames using a plunge router.
It is easy to use with minimal setting-up time, completing the job both accurately & quickly.
Used on-site & in joinery shops to increase productivity with excellent results.
Four apertures for fire door requirements.
No need for marking out in the conventional way.
Quick & simple to set-up as the hinge is used as the pattern.
Clean & accurate recesses are achieved every time. Suitable for timber based doors & square butt hinges.
Can be used on both inside and outside doors, rebated frames and on maximum 25mm thick fixed stops.
Use with a light duty plunge router with 1/4 inch collet.
Long reach router cutter required, 12mm diameter with 70mm overall length.
Angled position slots to prevent creep.
Unibase may be needed.
T4EK router requires a ref. UNIBASE or special guide bush ref. GB/T4/160.
