Product Description
Product Code: BP8BP
Pack Type: TIMbag
Pack Quantity: 1 Each
Barcode: 5055893366523

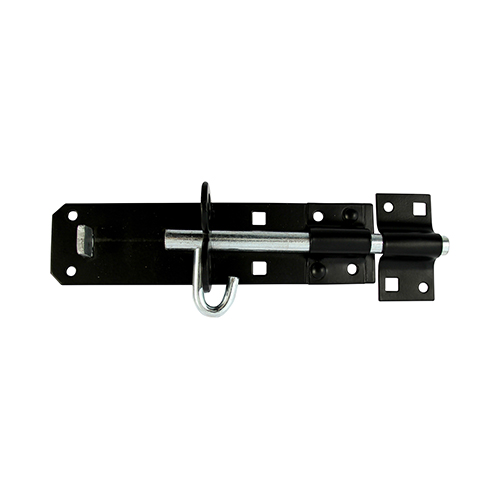

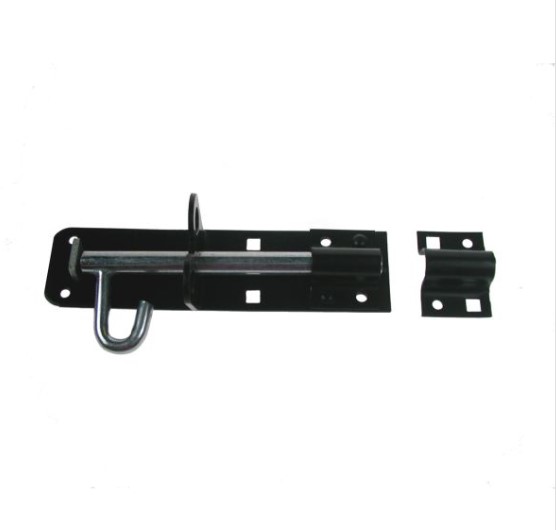

Brenton padbolts are used for securing flush mounted gates and shed doors in domestic and light commercial applications. They are pad-lockable and fixed with carriage bolts for added security. Fixings included.
Bolt L (inch)8
Bolt L (mm)200
Bolt Ø (mm)12
Bolt Throw (mm)45
BrandTIMCO
Carriage Bolt Size (mm)M6 x 50
Carton Qty (packs)10
Corrosion Rating (1-5)2 - Occasionally damp/wet, rural and sheltered areas
FinishEpoxy Black
Included ItemsM6 x 50mm Carriage Bolts (Qty 4) ?M6 Hex Full Nuts (Qty 4) ?M6 Washers (Qty 4) ?4.0 x 30mm Pan Screws (Qty 6)
MaterialCarbon Steel
Max. Padlock Shackle Ø (mm)12
MOQ1
MOQ Increment1
No. of Carriage Bolts4
No. of Nuts4
No. of Pan Screws6
No. of Washers4
Number of Bolt Holes4
Number of Screw Holes6
Nut Size (mm)M6
Nut TypeHex Full
Pack Dimensions L x W x H (mm)40 x 120 x 330
Pack Qty1
Pack TypeTIMbag
Pack Weight (kg)0.46
Pan Screw Size (mm)4.0 x 30
Plate L x W (mm)225 x 45
Rec. Screw Gauge (imp.)8
Rec. Screw Ø (mm)4
Staple Keep Size L x W (mm)56 x 33
To Fit Carriage Bolt Ø (mm)M6
Washer Size (mm)M6
