Product Description

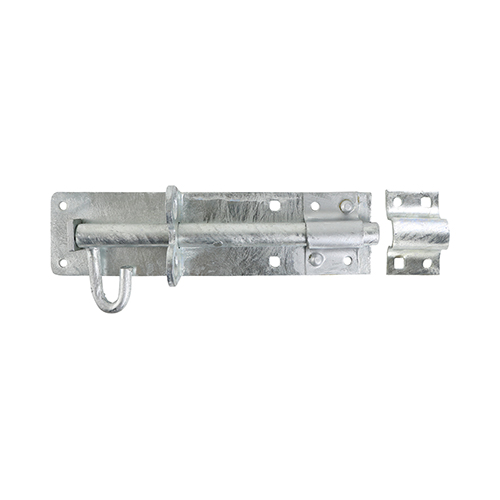

Heavy Brenton Padbolt - Hot Dipped Galvanised
10"
Product Code: 287658

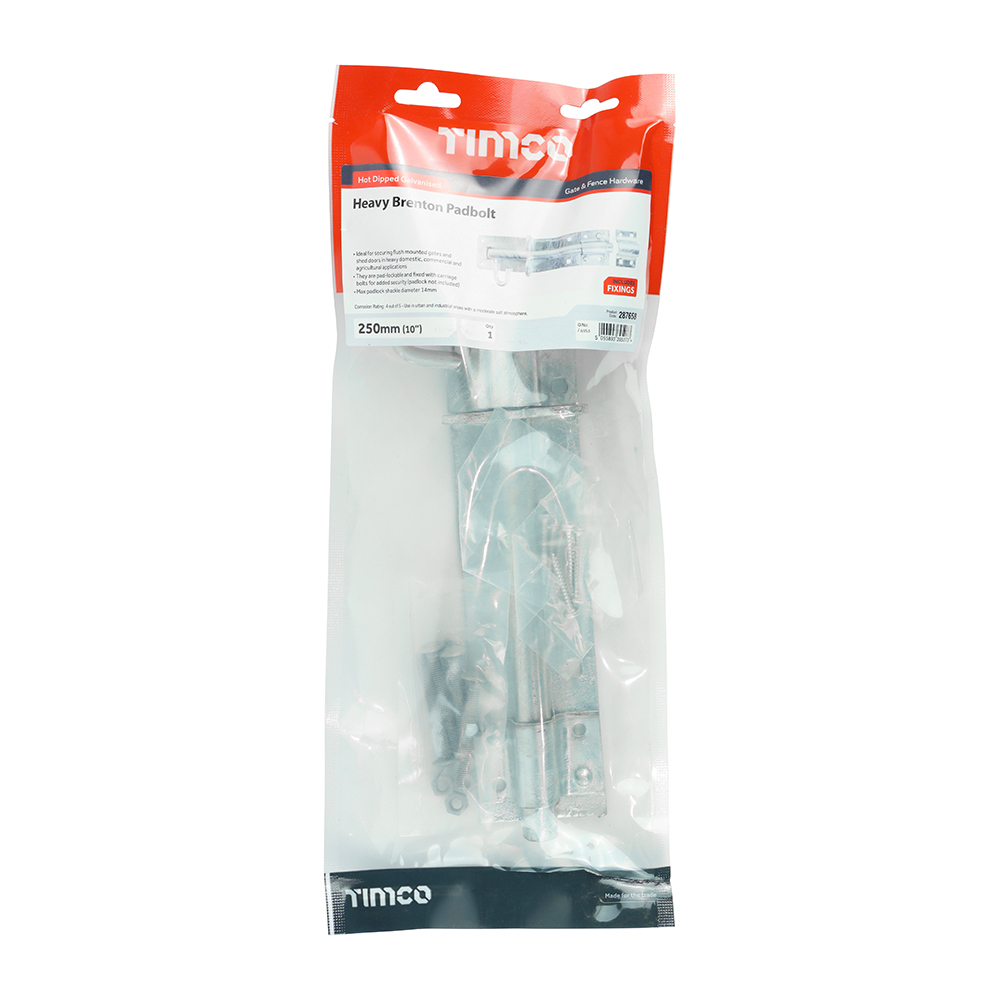

Pack Type: TIMbag
Pack Quantity: 1 Each
Barcode: 5055893395073
Brochure Page
Heavy brenton padbolt are used for securing flush mounted gates and shed doors in heavy domestic, commercial and agricultural applications. They are pad-lockable and fixed with carriage bolts for added security. Fixings included.
Bolt L (inch)10
Bolt L (mm)250
Bolt Ø (mm)16
Bolt Throw (mm)50
BrandTIMCO
Carriage Bolt Size (mm)M6 x 50
Carton Qty (packs)10
Corrosion Rating (1-5)4 - Urban & industrial areas with a moderate salt atmosphere
FinishHot Dipped Galvanised
Included ItemsM6 x 50mm Carriage Bolts (Qty 4)
M6 Hex Full Nuts (Qty 4)
M6 Form A Washers (Qty 4)
4.0 x 30mm Pan Screws (Qty 6)
MaterialCarbon Steel
Max. Padlock Shackle Ø (mm)14
MOQ1
MOQ Increment1
No. of Carriage Bolts4
No. of Nuts4
No. of Pan Screws6
No. of Washers4
Number of Bolt Holes4
Number of Screw Holes6
Nut Size (mm)M6
Nut TypeHex Full
Pack Dimensions L x W x H (mm)40 x 160 x 390
Pack Qty1
Pack TypeTIMbag
Pack Weight (kg)0.92
Plate L x W (mm)270 x 60
Rec. Screw Gauge (imp.)8
Rec. Screw Ø (mm)4
Staple Keep Size L x W (mm)60 x 40
To Fit Carriage Bolt Ø (mm)M6
Washer Size (mm)M6
Washer TypeForm A
