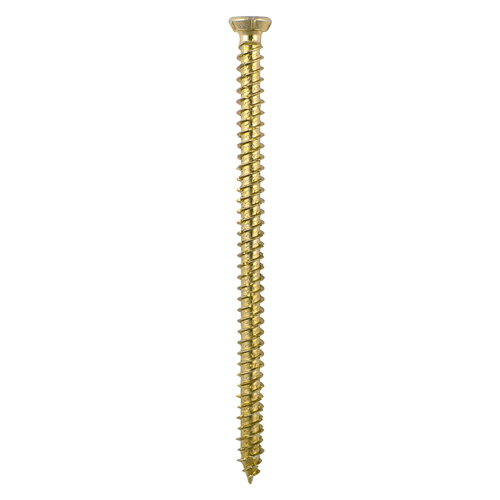

Product Description
A rapid and effective light duty anchoring system for fixing into concrete, brick, stone, concrete block and wood. This through fixing provides a single solution and replaces traditional fixings such as nylon frame and hammer fixings.
• Designed to replace traditional masonry fixings
• TX30 TX Drive recess to reduce driver wear & prevent camming-out
• Serrated V-threads to achieve optimum insertion into all masonry types
• Zinc plated and yellow passivated for increased corrosion resistance
• High-Low thread on first 30mm to aid insertion and reduce torque
• Ideal for fitting windows and door frames
• Flat countersunk head with five locking ribs
• All steel, non-flammable fixing conforming to BS 7671 standard's 18th edition, which requires wiring systems to be supported by materials which are unlikely to prematurely collapse in the event of a fire
ApprovalBS 7671:2018
BrandTIMCO
Carton Qty (packs)8
Corrosion Rating (1-5)1 - Clean, dry & low humidity environments
Driver Bit SizeTX30
Feature 7Flat countersunk head with five locking ribs
Feature 8All steel, non-flammable fixing conforming to BS 7671 standard's 18th edition, which requires wiring systems to be supported by materials which are unlikely to prematurely collapse in the event of a fire.
FinishZinc & Yellow
Fixture Hole Size Ø (mm)8
Head TypeFlat Countersunk with Ribs
Included ItemsTX30 S2 Bit (Qty 1)
MaterialCarbon Steel
MFT (mm)70
MOQ1
MOQ Increment1
Pack Dimensions L x W x H (mm)174 x 118 x 64
Pack Qty100
Pack TypeBox
Pack Weight (kg)2.36
Pallet Qty (packs)288
Point TypeSharp
Recess TypeTX Drive
Size Ø x L (mm)7.5 x 120
SubstratesWood, Concrete, Brick, Block, Stone
Thread CoverageFully Threaded
Thread Ø (mm)7.5
Thread TypeHigh-Low Start with V Flutes.
