Product Description
Product Overview

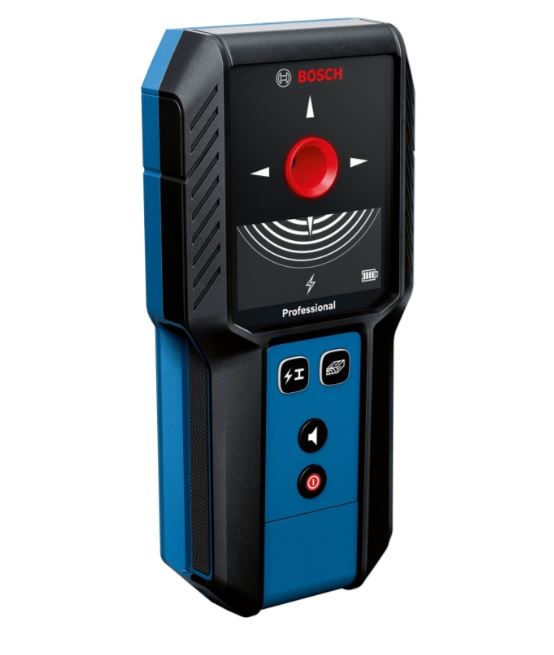

When youre drilling into a wall, you want to get the job done, confident that you wont hit an obstruction. Bosch's GMS 120-27 Professional wall scanner allows uncomplicated and intuitive detection of objects. Detection results appear via signal indication on the display and the colour-coded marking hole. The easy-to-use detector offers simple mode selection, and you can mark exactly through the marking hole where objects have been detected. The robust GMS 120-27 was developed for tough job sites with IP54 dust and splash water protection, plus a shock-absorbing rubber casing.
Part No: 0601081700(BOSM0601081700)
Features & Benefits
Gives you confidence by detecting metal, live wires, and wooden studs behind the wall
Easy to use with simple mode selection and marking hole
Built for operation on tough job sites thanks to shock-absorbing rubber casing and IP54
Technical Specification
Detectable objects: magnetic metals (e.g. iron), non-magnetic metals (e.g. copper), live cables, wooden substructures
Max. detection depth: 120 mm
Detection depth, magnetic metal, max.: 100 mm
Detection depth, non-magnetic metal, max.: 120 mm
Detection depth, live cables, max.: 50 mm
Detection depth, wooden substructures, max.: 30 mm
Dust and splash protection: IP 54
Material identification: Magnetic metal, Non-magnetic metal, Live cable, Non-metal material
Power supply: 2 x 1.5 V LR6 (AA)
Weight, approx: 0.29 kg
Additional function: Marking hole
