Product Description
This L4 CLL-301C Green Cross Line Laser is part of Milwaukee's 4v REDLITHIUM USB range of tools. Rechargeable via USB cable, this laser provides an all-in-one functionality with horizontal levelling and vertical alignment.

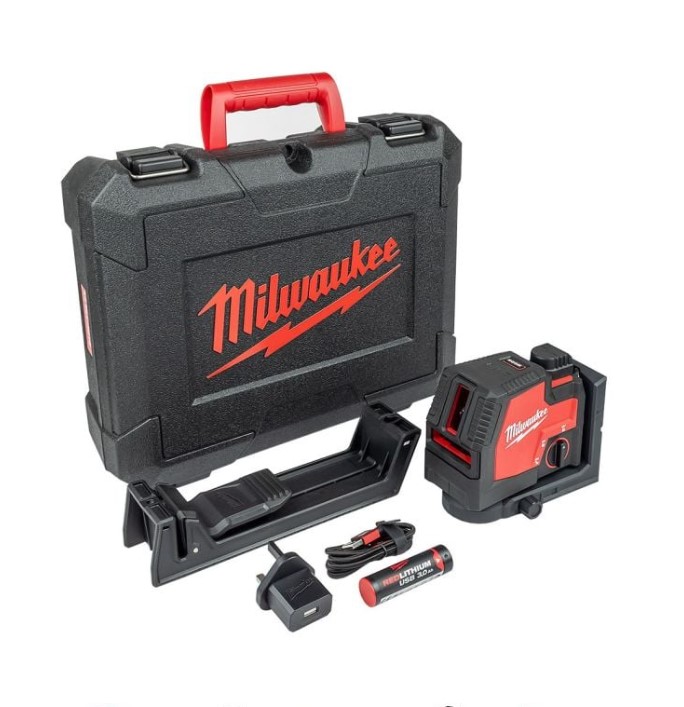

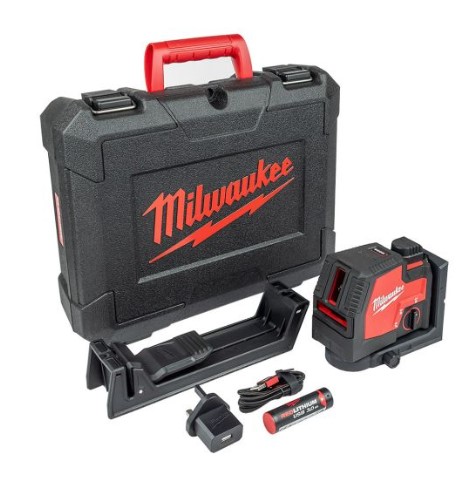

Supplied with 1x L4 B3 battery, a USB cable and wall plug and a Milwaukee branded Kitbox.
FEATURES
REDLITHIUM USB rechargeable green cross line laser provides an all-in-one functionality with horizontal levelling and vertical alignment
Built with high intensity green diodes to provide uncompromised visibility - up to 4x better visibility vs red lasers
High intensity green beams provide a working range of 30 m (50 m with a detector)
The rechargeable and removable REDLITHIUM USB 3.0 Ah battery provides all day run time of over 8 hours
1x REDLITHIUM USB 3.0 battery replaces up to 6,000 alkaline batteries over the lifetime of the battery
3 mode pendulum system: Manual Mode for use at any angle, Self-Levelling Mode that indicates out-of-level condition with a 4° self-levelling range and Pendulum Lock Mode to protect components during transport

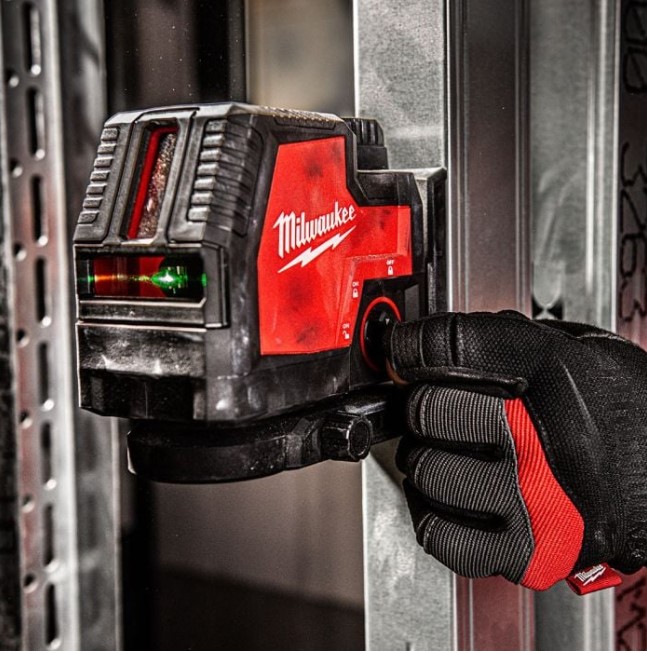

Integrated magnetic bracket with rear mounted amplified rare earth magnets, ¼? tripod thread and hang hole - allows attachment to steel stud, wooden stud and tripod
The bracket also provides the laser 360° rotation, with an integrated micro control knob for faster point to point alignment
Robust over-moulded construction with an IP54 rating, the laser is water/debris resistant and can withstand up to 1 metre drops
Conveniently charge REDLITHIUM USB battery internally during use with micro-USB cable from USB power source or AC outlet
Fuel gauge on the top and side of the laser allows for fast checking of the REDLITHIUM USB battery charge
Includes 1x track clip
SPECIFICATION
Voltage: 4v
Article Number: 4933478243
Accuracy: 0.3 mm/m
Battery Pack Capacity: 3.0Ah
Battery Type: Li-Ion Rechargeable USB
Laser Line Colour: Green
Compatible Laser Detector: LLD50
IP Protection Class: IP54
Laser Classification: Class 2
Laser Projection: 1x Vertical, 1x Horizontal
Max. Run Time With L4 B3 Battery: 8 Hours
Self-Levelling Range: 4.0°
Self-Levelling Time: 3 Seconds
Working Range Detector: 50 Metres
Working Range Visible: 30 Metres
Weight (Incl. Battery Pack): 0.9 kg
