Product Description
The Makita SK105DZ 12V MAX CXT Lithium-Ion Self-Levelling Cross-Line Red Beam Laser gives the user a cordless solution for level, align, and plumb applications. Depending on ambient light in the working environment, the SK105DZ has a line visibility range up to 25m and is detectable up to 80m with a Makita Laser Detector (sold separately).
The SK105DZ has a bright 635 nm class II red laser with ±0.3 mm/m = ±3.0 mm at 10m for best-in-class accuracy. The laser line fan length spans past the 90 degree position to provide 180 degree horizontal and 160 degree vertical lines for full reference line coverage. For increased efficiency, self-leveling line stability is achieved in up to 3 seconds for increased productivity.
For longer run time, all 10.8V/12V MAX CXT cordless tools are also compatible with the 10.8V/12V MAX CXT Lithium-Ion 4.0Ah battery (BL1040B sold separately). 10.8V/12V MAX CXT lithium-Ion batteries are engineered with a Battery Protection Circuit that protects against overloading, over-discharging and over-heating. It’s part of the expanding 10.8V/12V MAX CXT series, combining performance with superior ergonomics in a compact size.
FEATURES

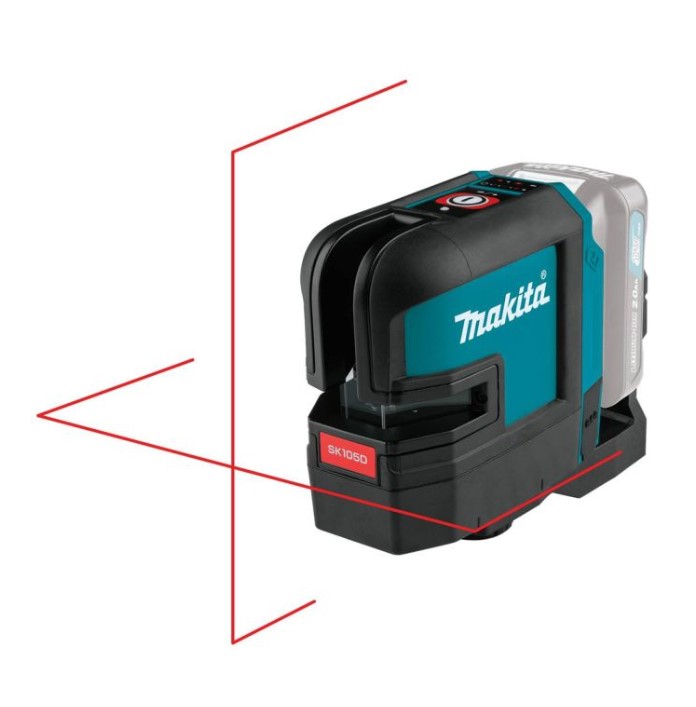

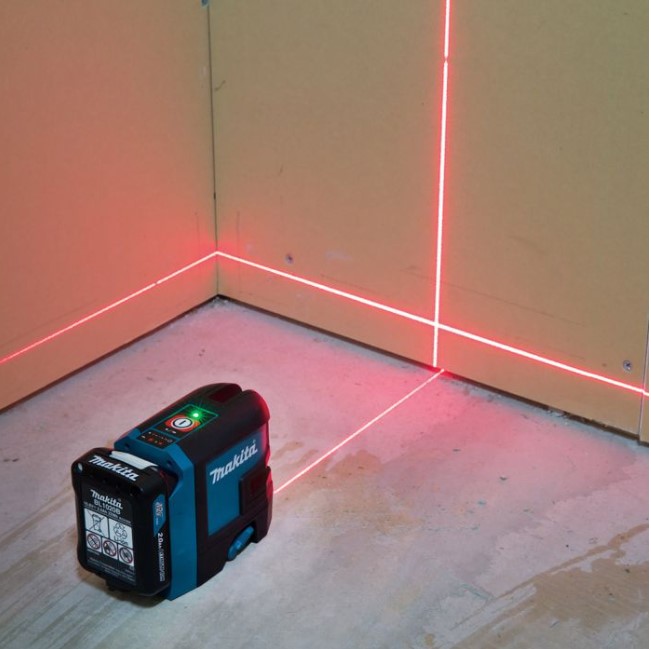

Selectable horizontal/vertical cross reference lines required for level, align and plumb applications
10.8V/12V MAX CXT battery delivers the convenience of a rechargeable tool battery and up to 40 hours of continuous run-time (battery not included)
Red line visibility range up to 25m depending on ambient light and detectable up to 80m with Makita Laser Detector (sold separately)
Bright 635 nm class II red laser with ±0.3 mm/m = ±3.0 mm at 10m for best-in-class accuracy

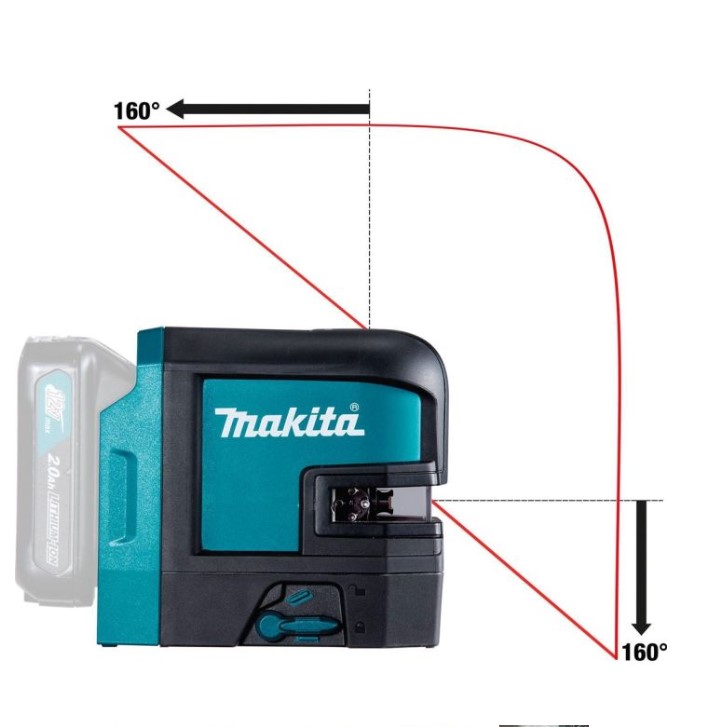

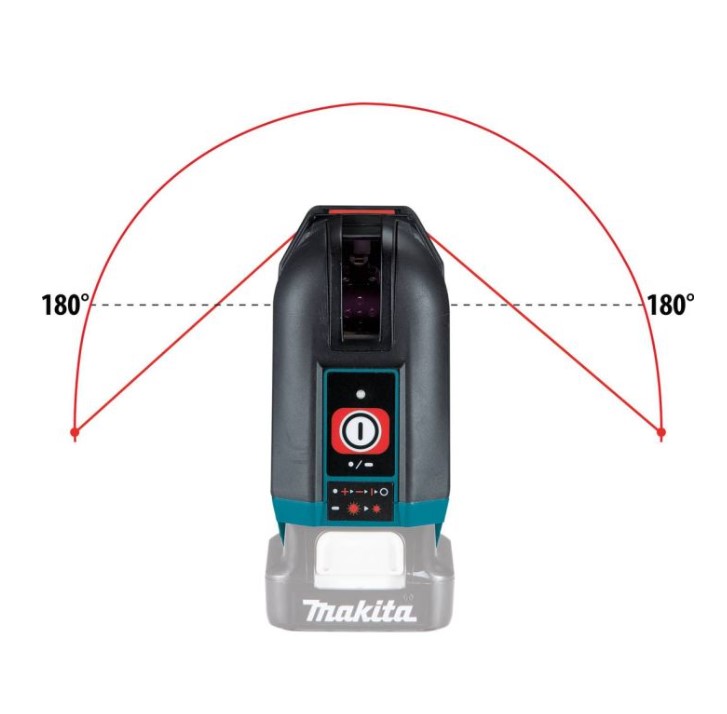

Laser line fan angle spans past the 180° horizontal line and 160° vertical line positions for full reference line coverage
Fast self-levelling line stability is achieved in up to 3 seconds for increased productivity
Integrated pendulum lock enables slope incline applications and provides added protection of laser diode during transport & storage
Self-levelling is correctable up to 4º of slope allowing operation on uneven surfaces
Dust and water resistance with IP 54 rating for increased durability
Highly protected laser windows are recessed into the housing for increased durability
Rubberised housing over-mold for increased protection
Simplified one button user interface for ease of operation
Low laser brightness mode conserve battery power for extended run-time performance

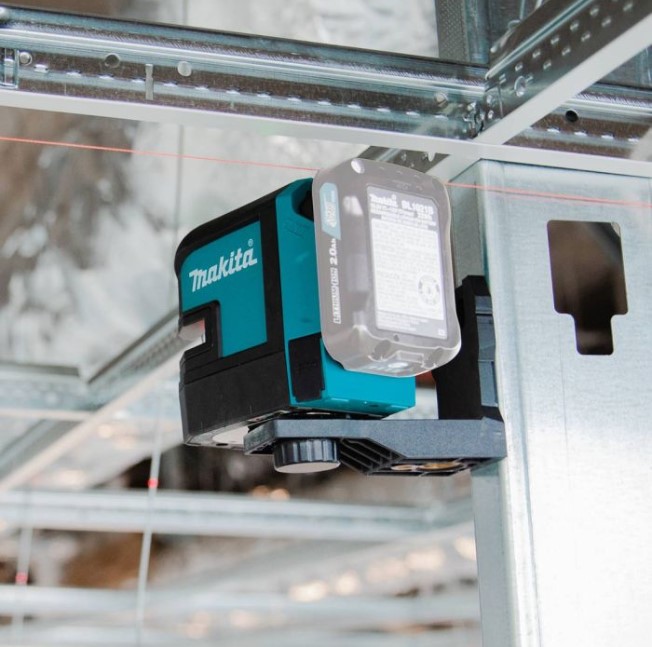

Multi-purpose magnetic bracket with integrated 1/4” & 5/8” threads allow laser attachment to metal surfaces, wood surfaces or Makita Tripods
SPECIFICATION
Voltage: 10.8V / 12V MAX CXT
Laser Colour: Red
Beam Direction/Fan Angle: Vertical >160°, Horizontal >180°
Range: 25m
Range with Receiver: 80 m
Self Levelling Accuracy: ±0.3 mm/m = ±3.0 mm @ 10m
Horizontal/Vertical Line Accuracy: ±0.3 mm/m
Self-Levelling Range: ± 4 º
Self-Levelling Time: < 3 seconds
Laser Type: 635 ± 5 nm, Class 2
Laser Line Width at 5m Distance: < 2mm
Approx. Continuous Run Time (4.0Ah): 40 hrs
Operating Temperature Range: -10 - 50 ºC
Storage Temperature Range: -25 - 70 ºC
Tripod Thread: 1/4 "
Net Weight: 0.67 - 0.84 kg
Pulse Mode w/ Detector: Yes
Pendulum Lock: Yes
