Product Description

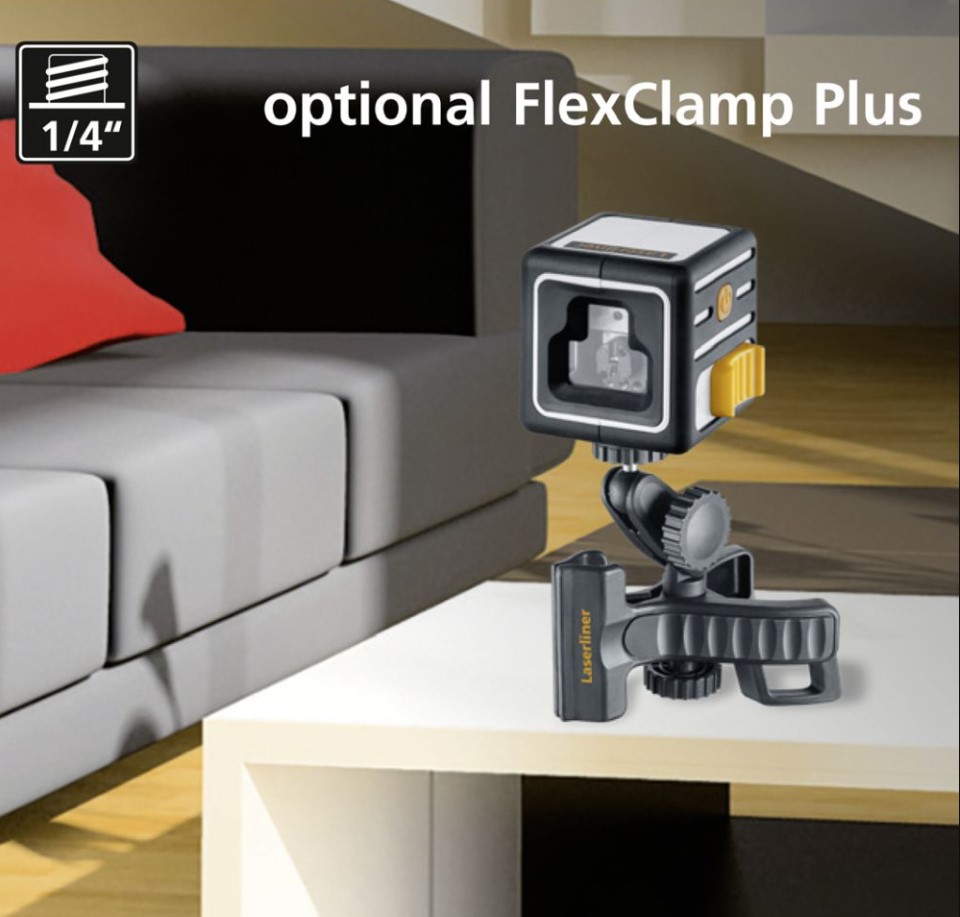

CompactCube-Laser 3 - 036.150A
PowerBright-Laser: Special high-performance laser diodes project extremely visible laser lines.

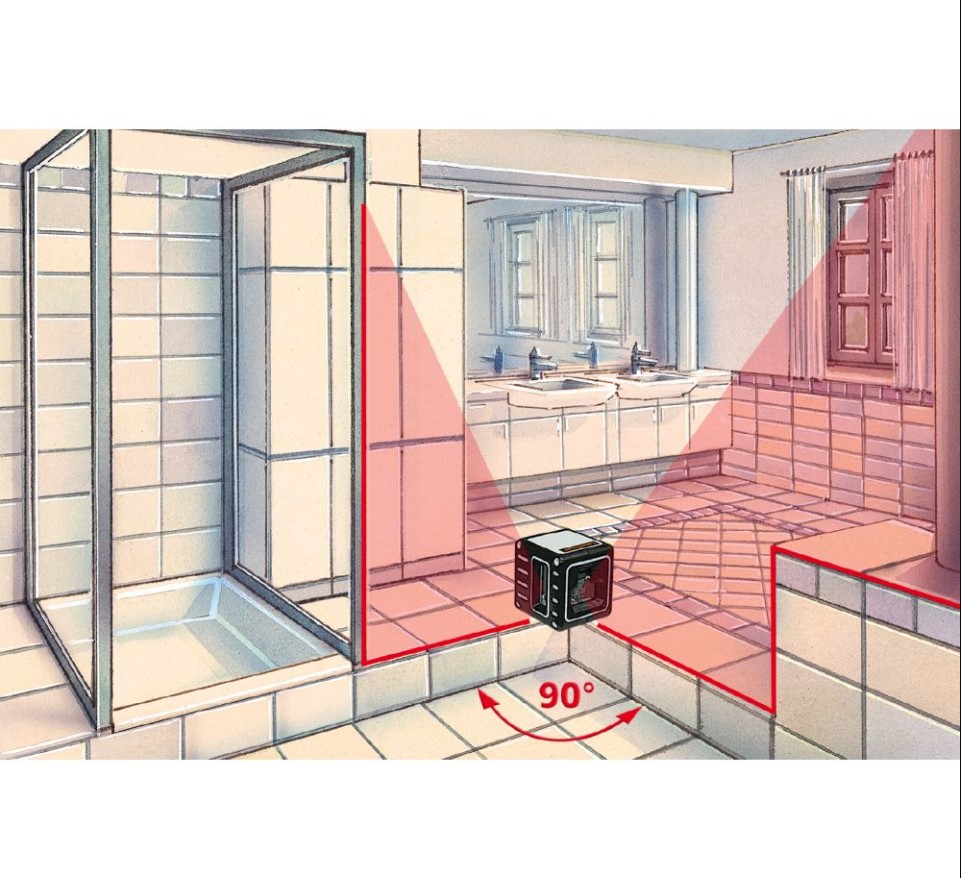

This unit produces 3 very visible laser lines which make it outstanding for the alignment of tiles, wall studding, windows, doors, etc.
The 2 vertical lines are aligned at right angles to one another.
Automatic Level: automatic alignment by virtue of a magnetic pendulum system.
Individually switchable laser lines
Additional slope mode to align angled surfaces.
Out-Of-Level: is indicated by optical signals when the unit is outside its self-levelling range.
Transport lock: A pendulum lock protects unit during transport.
Small, compact design – fits in any toolbox
Sturdy, ergonomically designed, rubberised casing
DIMENSIONS (W x H x D)69 x 69 x 65 mm
STORAGE TEMPERATURE-10°C ... +70°C
WORKING TEMPERATURE0°C ... +40°C
OPERATING TIMEwith laser cross at front: approx. 20 hours with all laser lines: approx. 9 hours
POWER SUPPLY3 x 1.5 V alkaline batteries (type AAA, LR6)
LASER CLASS2 / < 1 mW
LASER WAVELENGTH635 nm
OPERATING RANGE(depending on brightness of area) 15 m
LEVELLINGautomatic
ACCURACY± 0,5 mm / m
SELF-LEVELLING RANGE± 3°
WEIGHT (incl. batteries)285 g
