Product Description

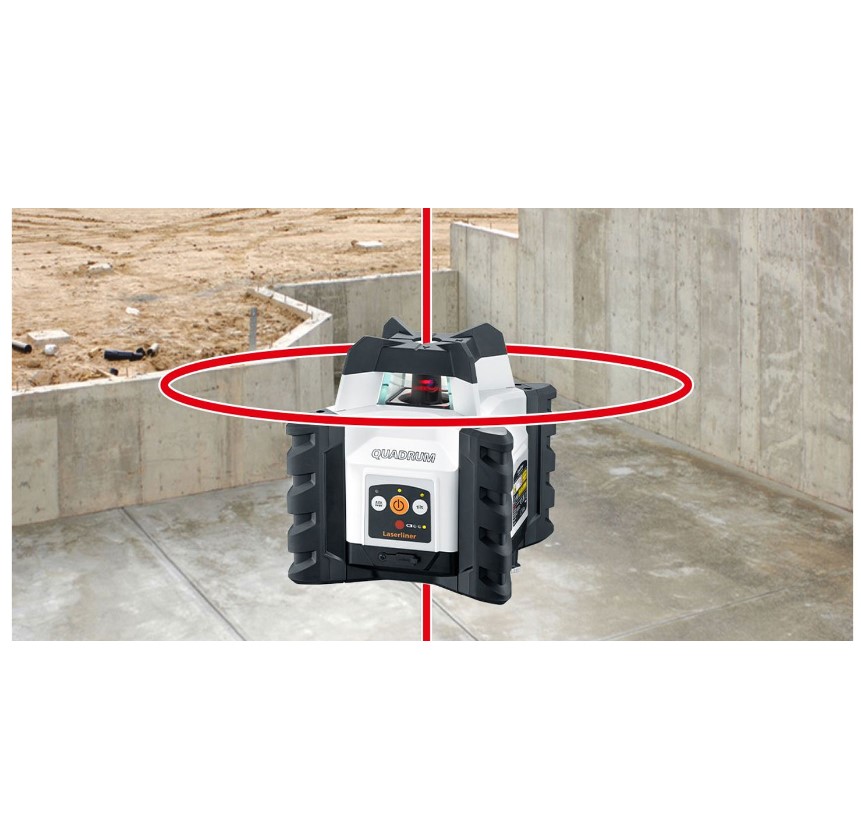

This fully automatic and extremely easy-to-use rotating laser
including aluminium lightweight tripod and SensoMaster M350
high-performance laser receiver is ideal for precise alignment
work in the horizontal plane. Thanks to the 5/8” thread
integrated into the side of the casing for mouting to tripods, the
laser can be positioned so that it can also be used for precise
vertical alignment. The plumb points projected at the top and
bottom act as a reliable reference to ensure the horizontal plane
and the plumb of a foundation. All functions can easily be
controlled with the remote control up to a maximum distance of
40 metres. The HighCapacityPack with lithium-ion technology
can be used and charged at the same time which means users
can work without interruption.
TECHNICAL DATA
Self-Levelling
Range ± 4°
Accuracy ± 0.15 mm / m
Levelling horizontal / vertical automatic
Laser
Wavelength 635 nm
Laser Class 2 / < 1 mW (EN 60825-1:2014/
A11:2021 / EN 50689:2021)
Laser Modes Hand receiver mode
Spot mode
Rotary mode
Scan mode
Protection Class IP 66
Power Supply Li-ion battery pack 7.4V / 2.6Ah /
19.24Wh
Operating Time approx. 25 hours
Battery
Recharging Time approx. 4 hours
Operating
Conditions
-10°C … 50°C, max. humidity 80%
rH, no condensation, max. working
altitude 4000 m above sea level
Storage
Conditions
-10°C … 70°C, max. humidity 80%
rH
Dimensions (W x
H x D) 170 mm x 170 mm x 188 mm
Weight 1575 g #

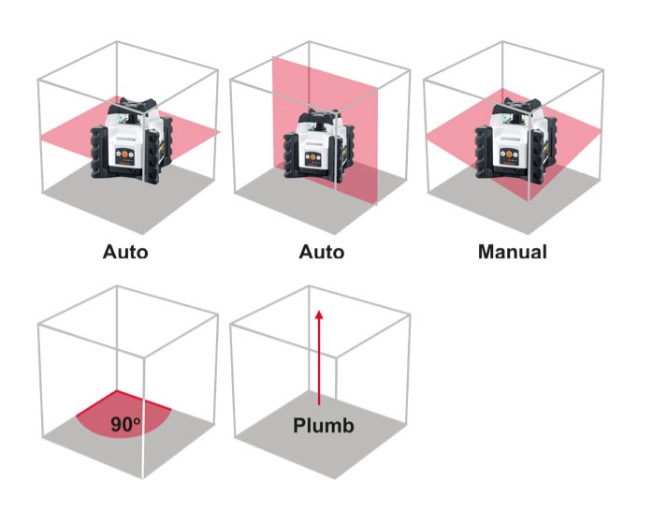

Precise alignment of horizontals
Light and robust stand for a secure footing
Easy alignment of slopes up to 4° with motorised tilt function
and over 4° with manual tilt function and optional angle
plate
Also suitable for precise vertical alignment work due to 5/8”
thread
Extremely practical, easy to use, one-button operation
Additional plumb laser at top and bottom
