Product Description
The Simpson SAE hanger is a heavy-duty hanger designed for applications requiring additional strength. The SAE hanger can be installed a variety of header members including timber, steel, masonry & I-Joists. The SAE hanger can be nailed using square twist nails, and it also has bolt holes for fixing into masonry. The hanger depth is to be at least 60% of the carried member depth to prevent rotation, unless additional lateral restraint is added to the top of the carried member.
Features
Quick & simple installation
Fixing holes for twist nails & bolt fixings
Can be used with timber, I-Joist, steel or masonry header members
Hanger depth is to be at least 60% of the carried member depth
The SAE380/50/2 is a replacement for the SAE380/50/2/25

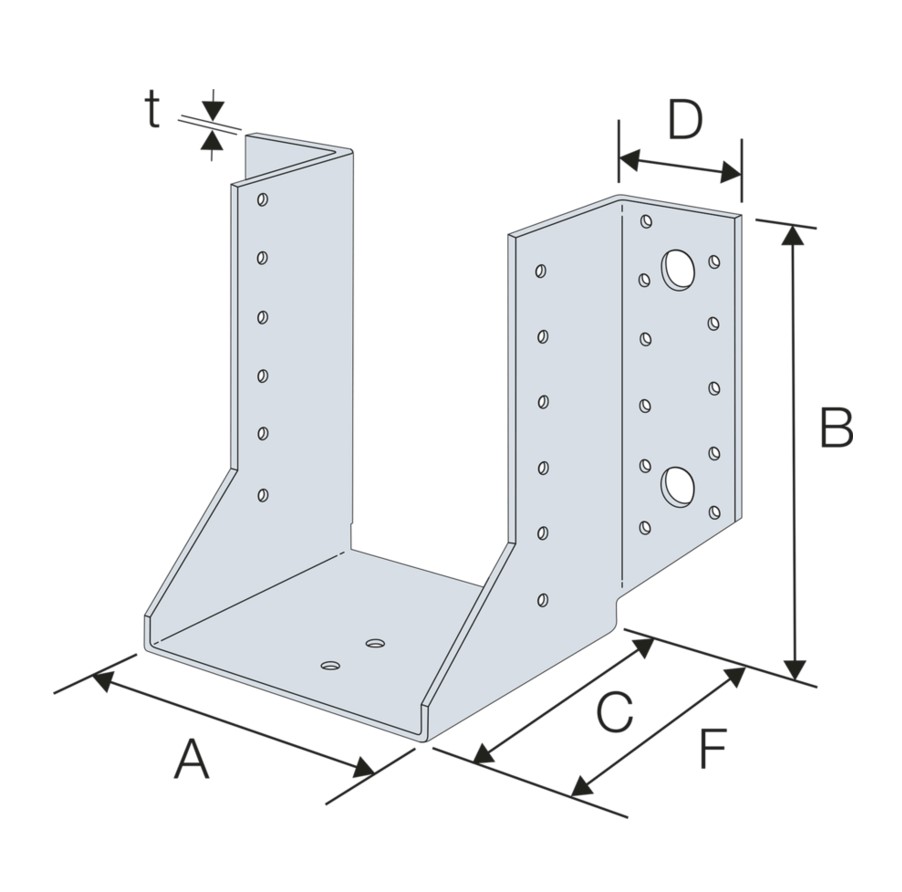

Specifics
Hanger width (A): 50mm (Joist width MIN-MAX: 47-50mm)
Hanger height (B): 165mm (Joist height MIN-MAX: 180-276mm)
Depth (C): 84mm
Leg width (D): 41.5mm
Thickness (t): 2.0mm
Header fixing holes: 20 x Ø5mm, 4 x Ø13mm
Joist fixing holes: 10 x Ø5mm
