Product Description
The Simpson Strong Tie JHM is a masonry hanger, for supporting timber joists, beams and trussed rafters from masonry walls. The Simpson JHM hanger features a handy inspection slot at the bottom of the hanger to aid easy inspection from the ground.
Features
Built-in inspection slot at the base of the hanger to aid inspection from the ground
Top flange provides widest area in contact with masonry support allowing superior performance
Embossments on JHM stiffen top flange and holes allow improved mortar keying
JHM side flange on deeper hangers is much higher than traditional style, providing greatly enhanced resistance to joist rotation

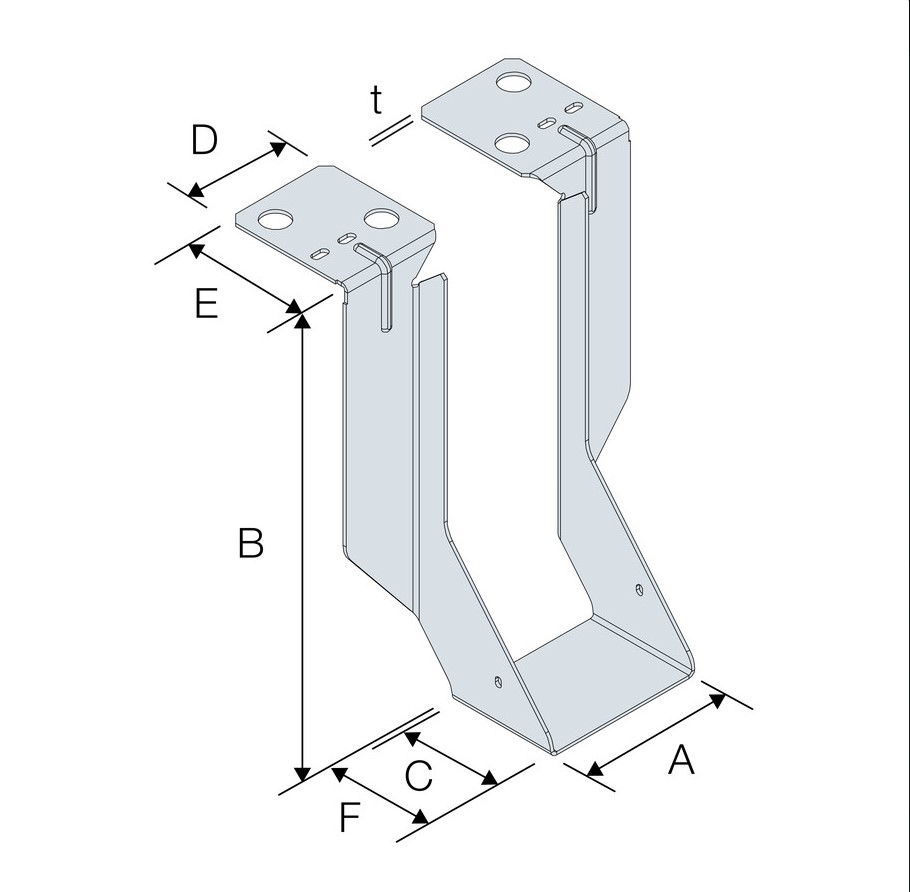

Specifics
Width (A): 91mm
Height (B): 215mm
Seat depth (C): 64mm
Measurement D: 64mm
Measurement E: 75mm
Joist fixings holes: 2 x Ø4mm
Thickness: 2.0mm
