Product Description

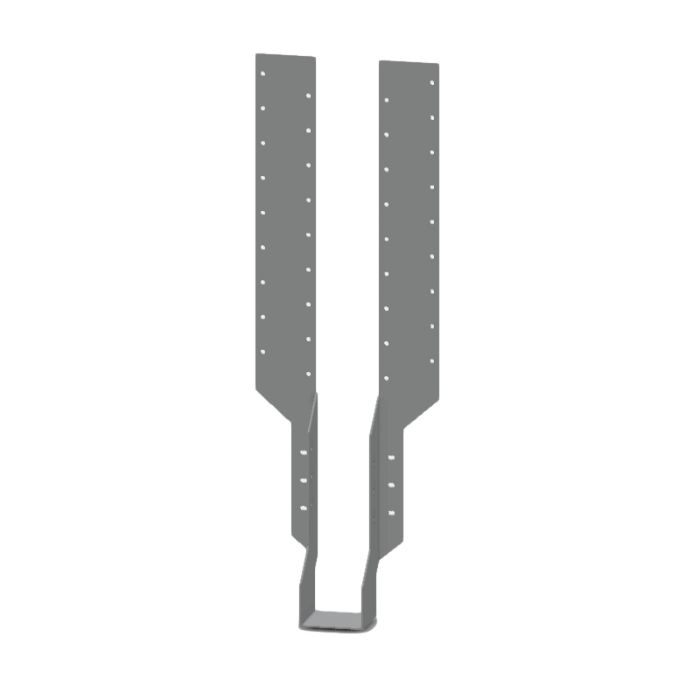

The Simpson JHA450 joist hanger is a height adjustable joist hanger for supporting timber joists from timber members. The Simpson Strong-Tie JHA is made from pre-galvanised mild steel and has European Technical Approval for use in construction. The JHA450 (long leg) version has extra-long legs and is made from thicker gauge steel for heavier duty applications.
Features
Galvanised joist hanger that provides ease of installation
Published performance values are based on 3.75x30mm twist nails
Wider strap for greater surface area & allows increased nail spacing
Min. and max. nailing schedules are stamped into the strap
The model number & size are stamped into the seat of the hanger
Longer, wider legs & thicker gauge than the JHA270

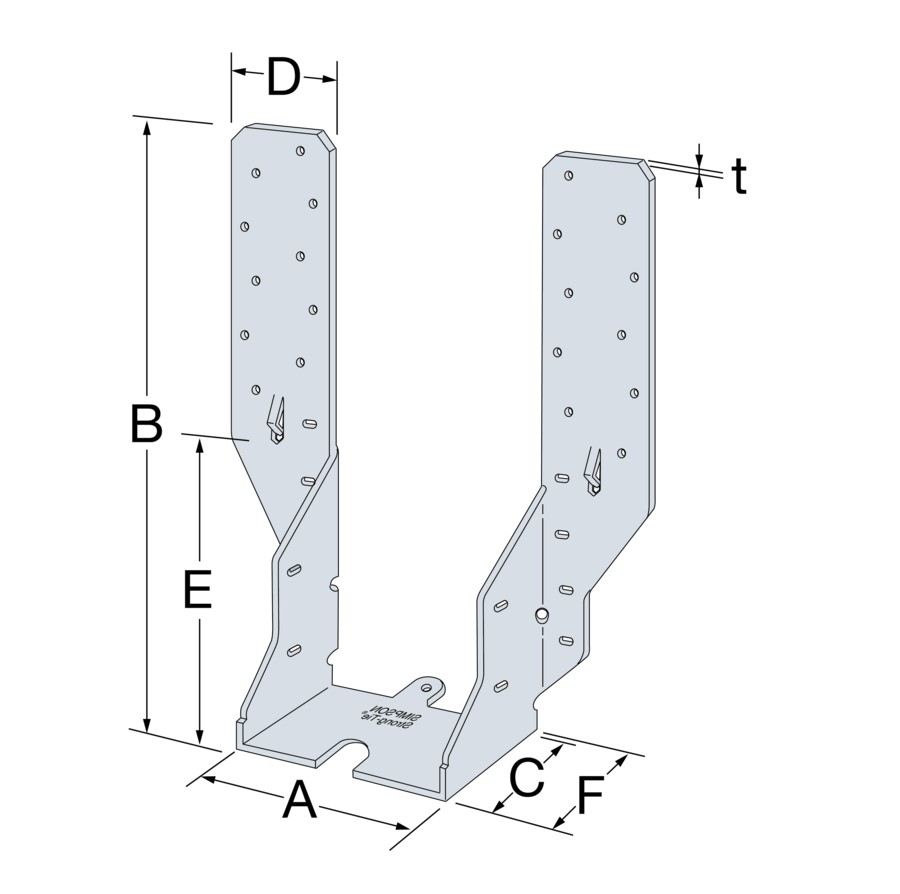

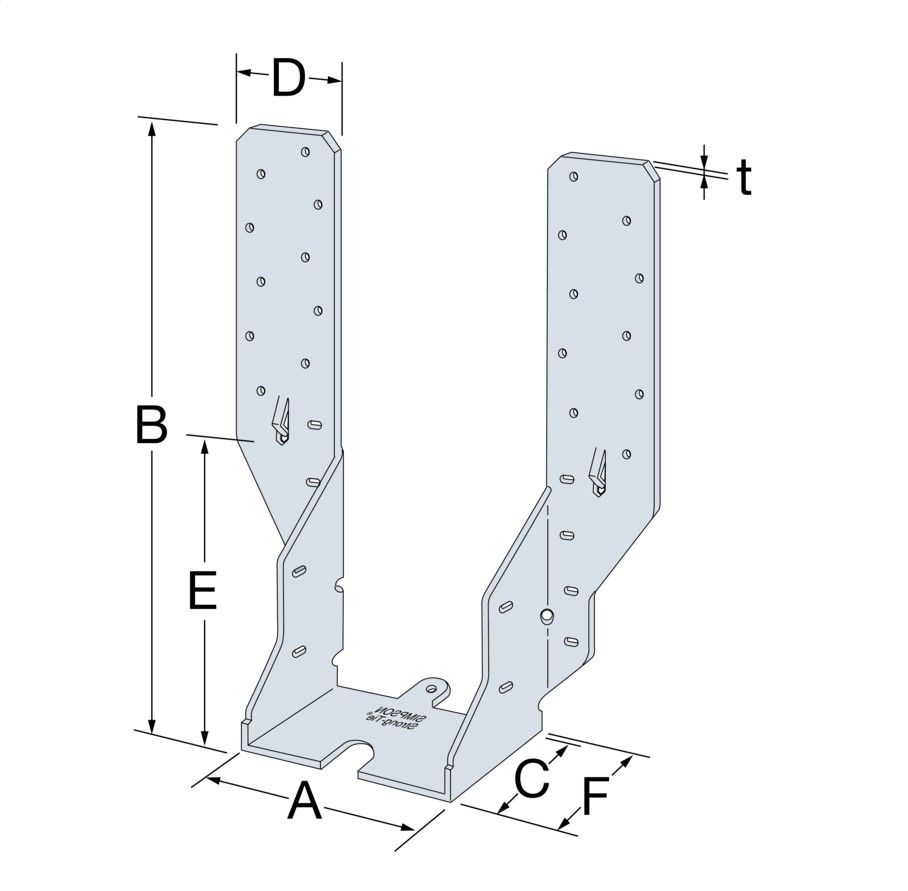

Specifics
Hanger width (A): 50mm (1 x 50mm joist)
Stirrup height (B): 185mm
Depth (C): 50mm
Led width (D): 51.5mm
Height (E): 475mm
Thickness (t): 1.5mm
